208116-4 | AMP

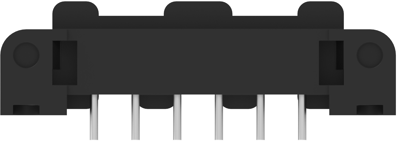

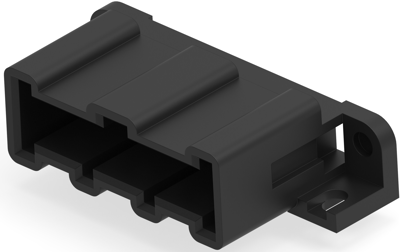

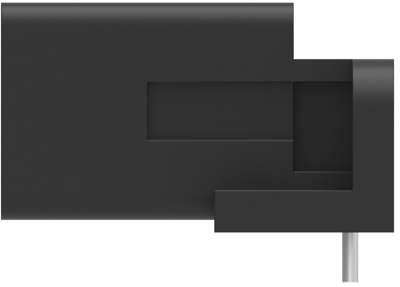

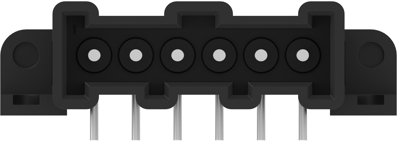

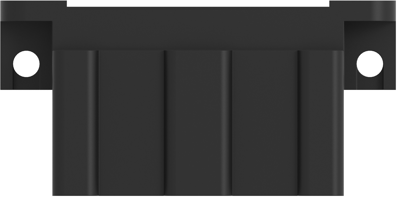

Pin header, 6 pole, pitch 5.08 mm, angled, red, 208116-4
Unit Price (€ / pc.)
9.8056 € *
Standard delivery time from the manufacturer is: 39 Weeks
PCB Connection System, 208116-4, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 6 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Thermoplastic
- Housing Color: red
- Orientation: angled
- Number of positions: 6
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 7.5 A
- Centerline (Pitch): 5.08 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Colour | red | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 7.5 A | |
| Grid | 5.08 mm | |
| Connection plating | tin-plated | |
| Pin number | 6 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 150 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
