208100-1 | AMP

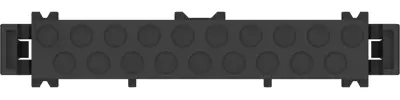

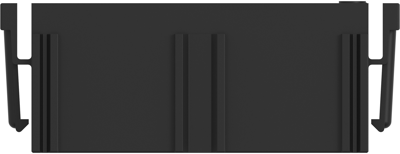

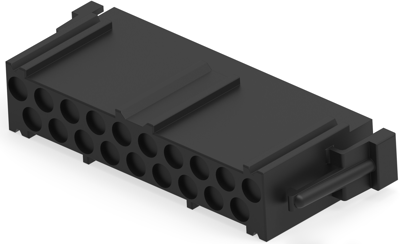

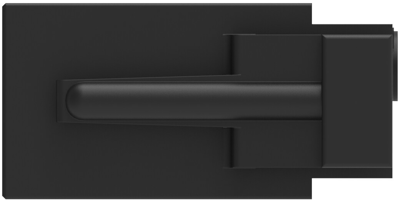

Plug housing, 19 pole, pitch 5.08 mm, straight, black, 208100-1
Unit Price (€ / pc.)
6.3427 € *
Available in 5 Days: 9,261 pcs. - if ordered today
Total Price:
6.34 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3427 €
10 pcs.
5.8905 €
25 pcs.
5.4978 €
50 pcs.
4.9980 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 208100-1, AMP
Wire-to-Board, Printed Circuit Board, 19 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: PA 66
- Housing Color: red
- Number of positions: 19
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 14 A
- Centerline (Pitch): 5.08 mm
- Row-to-Row Spacing: 5.08 mm [0.2 in]
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Colour | black | |
| Rated voltage | 150 V | |
| Connection | crimp connection | |
| Pin number | 19 pole | |
| Type of locking | Yes | |
| Additional parts | unequipped | |
| Grid | 5.08 mm | |
| Version | plug housing | |
| Number of rows | 2 | |
| Contact type | socket | |
| Rated current | 14 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
