208099-3 | AMP

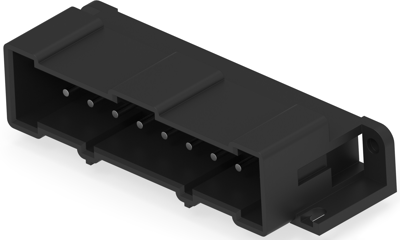

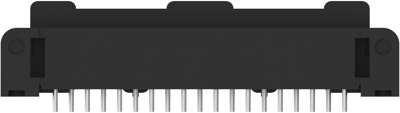

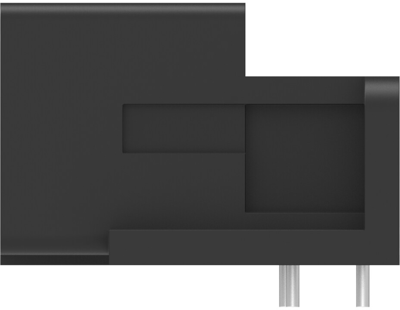

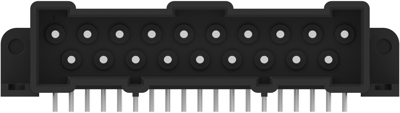

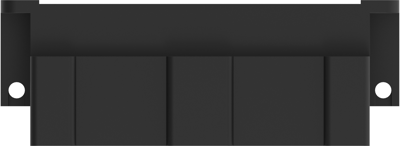

Pin header, 19 pole, pitch 6.35 mm, angled, red, 208099-3
Unit Price (€ / pc.)
21.5628 € *
Available in 5 Days: 305 pcs. - if ordered today
PCB Connection System, 208099-3, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 19 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: red
- Orientation: angled
- Number of positions: 19
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 7.5 A
- Centerline (Pitch): 6.35 mm
- Row-to-Row Spacing: 5.08 mm [0.2 in]
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Connection plating | tin-plated | |
| Colour | red | |
| Rated voltage | 150 V | |
| Connection | PCB connection | |
| Pin number | 19 pole | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Grid | 6.35 mm | |
| Version | pin header | |
| Number of rows | 2 | |
| Contact type | pin | |
| Rated current | 7.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
