207615-7 | AMP

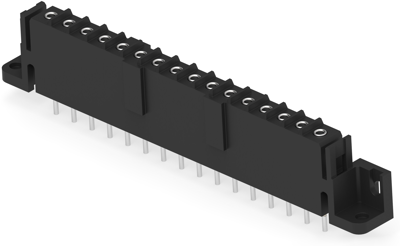

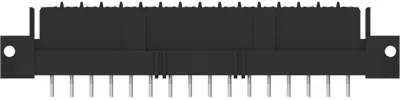

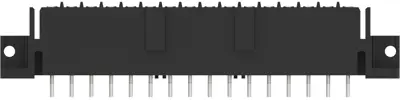

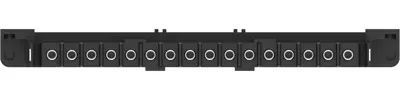

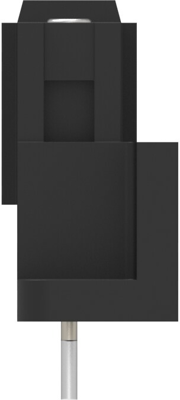

Pin header, 16 pole, pitch 5 mm, straight, red, 207615-7
Unit Price (€ / pc.)
46.2077 € *
Available in 5 Days: 240 pcs. - if ordered today
Total Price:
46.21 € *
Price list
Quantity
Price per unit*
1 pcs.
46.2077 €
2 pcs.
43.2208 €
5 pcs.
40.6028 €
10 pcs.
37.7468 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 207615-7, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 16 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: red
- Orientation: straight
- Number of positions: 16
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 7.5 A
- Centerline (Pitch): 5 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Connection | PCB connection | |
| Colour | red | |
| Additional parts | equipped | |
| Pin number | 16 pole | |
| Contact type | socket | |
| Orientation | straight | |
| Type of locking | Yes | |
| Rated voltage | 150 V | |
| contact surface | gold-plated | |
| Version | pin header | |
| Rated current | 7.5 A | |
| Number of rows | 1 | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
