207612-7 | AMP

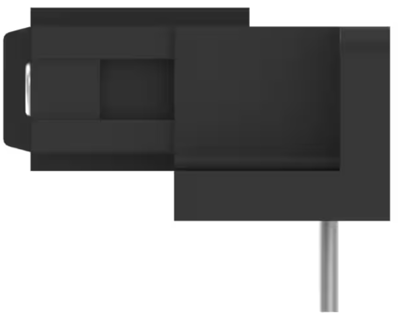

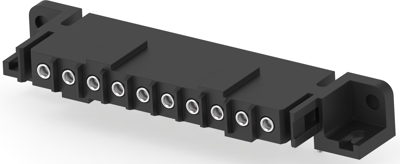

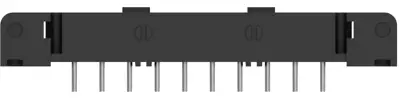

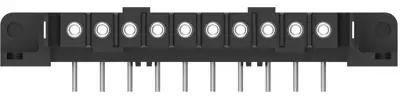

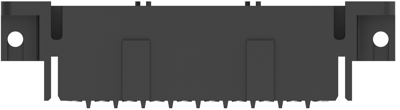

Pin header, 10 pole, pitch 5 mm, angled, red, 207612-7
Unit Price (€ / pc.)
16.5172 € *
Standard delivery time from the manufacturer is: 24 Weeks
PCB Connection System, 207612-7, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Housing Material: Nylon GF
- Housing Color: red
- Orientation: angled
- Number of positions: 10
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 7.5 A
- Centerline (Pitch): 5 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Connection plating | tin-plated | |
| Colour | red | |
| Rated voltage | 150 V | |
| Connection | PCB connection | |
| Pin number | 10 pole | |
| contact surface | gold-plated | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Grid | 5 mm | |
| Version | pin header | |
| Number of rows | 1 | |
| Contact type | socket | |
| Rated current | 7.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
