207610-7 | AMP

Socket header, 6 pole, pitch 5 mm, angled, red, 207610-7

Order No.: 39P1803
EAN: 4099889977592
MPN:
207610-7

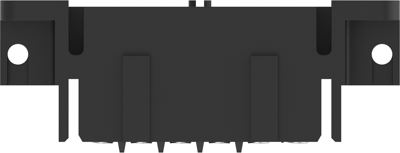

207610-7 AMP PCB Connection Systems Image 1

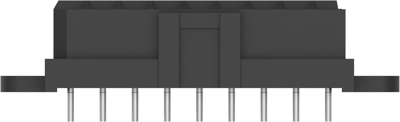

207610-7 AMP PCB Connection Systems Image 2

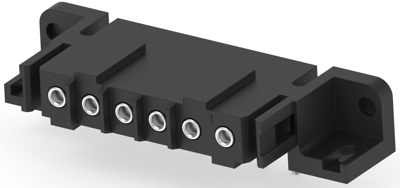

207610-7 AMP PCB Connection Systems Image 3

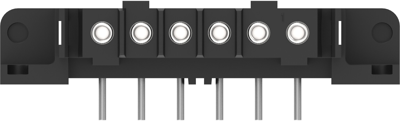

207610-7 AMP PCB Connection Systems Image 4

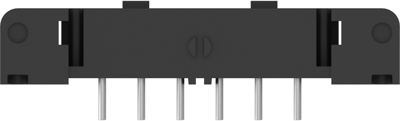

207610-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
11.5787 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
1,389.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
120 pcs.
11.5787 €

PCB Connection System, 207610-7, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: red
  • Orientation: angled
  • Number of positions: 6
  • Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
  • Rated current: 7.5 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Rated voltage 150 V
Orientation angled
Pin number 6 pole
Version socket header
Colour red
Grid 5 mm
Rated current 7.5 A
Type of locking Yes
Contact type socket
Number of rows 1
Connection PCB connection
Connection plating tin-plated
contact surface gold-plated
Additional parts equipped
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
