207609-6 | AMP

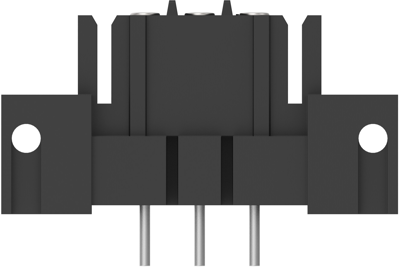

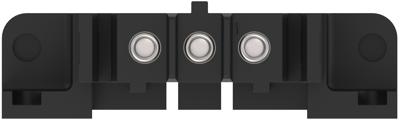

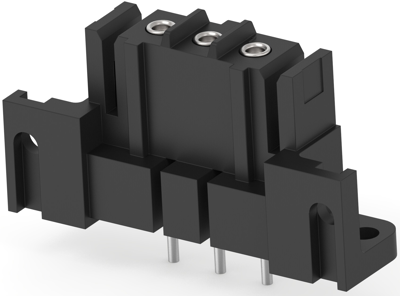

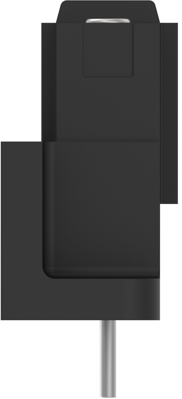

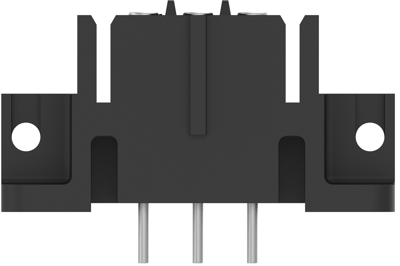

Connector, 3 pole, pitch 5 mm, straight, black, 207609-6
Unit Price (€ / pc.)
6.7473 € *
Available in 5 Days: 5,125 pcs. - if ordered today
Total Price:
674.73 € *
Price list
Quantity
Price per unit*
100 pcs.
6.7473 €
200 pcs.
6.6283 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 207609-6, AMP
PCB Mount header, Vertical, Wire-to-Board, 3 Position, 5 mm .197 in Centerline, Tin, Through Hole-Solder, Power & Signal, Black.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 3 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | connector | |
| Rated current | 7.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
