207544-7 | AMP
Pin header, 16 pole, pitch 5 mm, straight, black, 207544-7
Unit Price (€ / pc.)
30.3807 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
30.38 € *
Price list
Quantity
Price per unit*
1 pcs.
30.3807 €
2 pcs.
28.4291 €
5 pcs.
26.7036 €
10 pcs.
24.8234 €
*incl. VAT plus shipping costs
Subject to prior sale

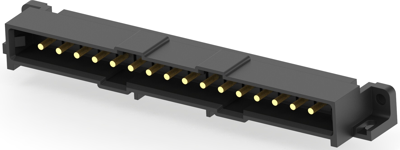

Pin header, 207544-7, AMP
PCB Mount header, Vertical, Wire-to-Board, 16 Position, 5 mm .197 in Centerline, Fully Shrouded, Gold, Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 16 pole | |
| Grid | 5 mm | |
| Connection | solder connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 600 V | |
| Rated current | 7.5 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
