207535-1 | AMP

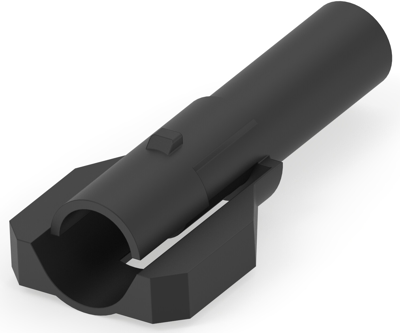

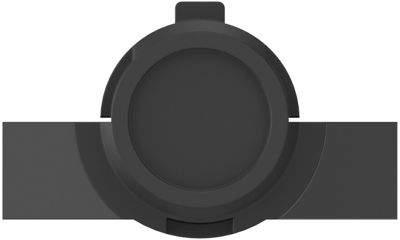

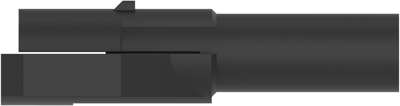

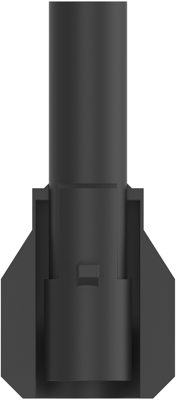

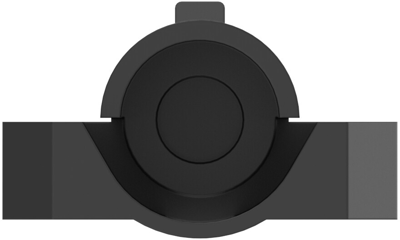

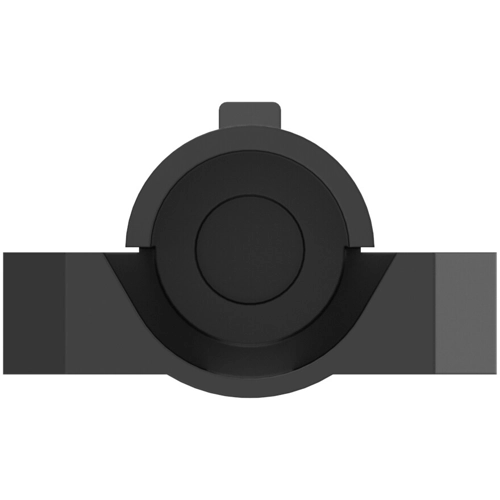

Plug/socket housing, 1 pole, pitch 5 mm, straight, black, 207535-1
Unit Price (€ / pc.)
1.9040 € *
Standard delivery time from the manufacturer is: 33 Weeks
PCB Connection System, 207535-1, AMP
Wire-to-Wire, Wire & Cable, 1 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female/Male
- Housing Material: PA 66
- Housing Color: red
- Number of positions: 1
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 14 A
- Centerline (Pitch): 5 mm
- Row-to-Row Spacing: 5 mm [0.197 in]
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Colour | black | |
| Rated voltage | 600 V | |
| Connection | crimp connection | |
| Pin number | 1 pole | |
| Additional parts | unequipped | |
| Grid | 5 mm | |
| Version | plug/socket housing | |
| Number of rows | 1 | |
| Contact type | socket/pin | |
| Rated current | 14 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
