207530-7 | AMP

Pin header, 18 pole, pitch 5 mm, straight, red, 207530-7

Order No.: 39P1847
EAN: 4099889977769
MPN:
207530-7
Series: Metrimate

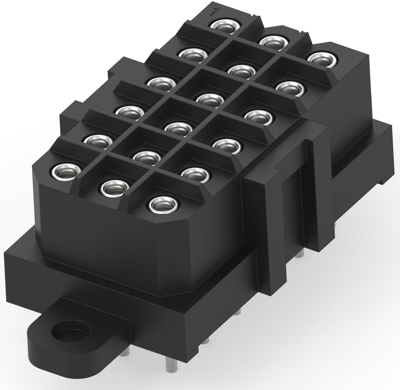

207530-7 AMP PCB Connection Systems Image 1

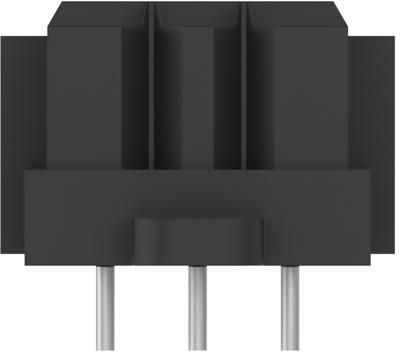

207530-7 AMP PCB Connection Systems Image 2

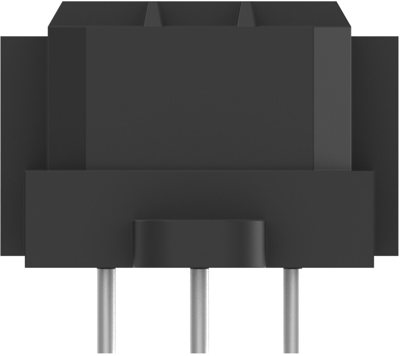

207530-7 AMP PCB Connection Systems Image 3

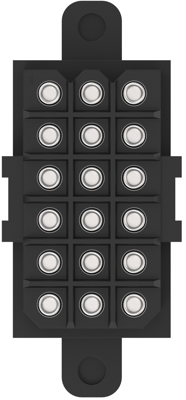

207530-7 AMP PCB Connection Systems Image 4

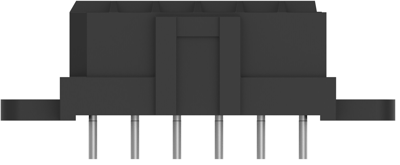

207530-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
29.0836 € *
Available in 5 Days: 391 pcs. - if ordered today
Total Price:
29.08 € *
Price list
Quantity
Price per unit*
1 pcs.
29.0836 €
5 pcs.
27.5723 €
10 pcs.
25.7992 €
25 pcs.
23.5144 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 207530-7, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 18 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: red
  • Orientation: straight
  • Number of positions: 18
  • Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
  • Rated current: 7.5 A
  • Centerline (Pitch): 5 mm
  • Row-to-Row Spacing: 5 mm [0.197 in]
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Grid 5 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 7.5 A
Rated voltage 150 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 6
Colour red
Pin number 18 pole
Connection PCB connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
