207442-1 | AMP

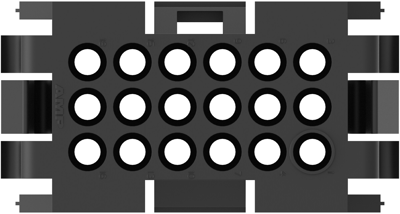

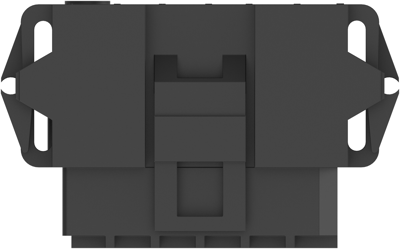

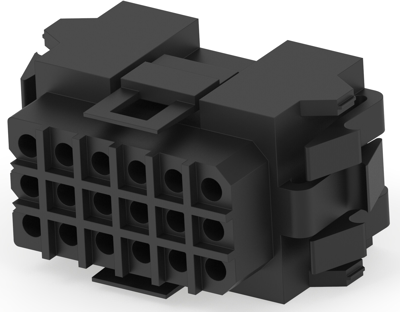

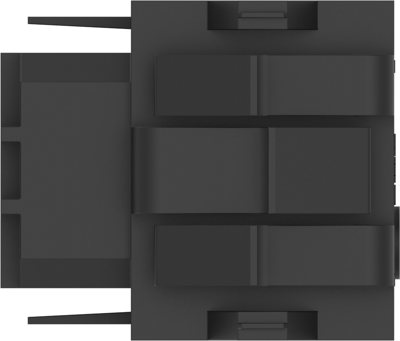

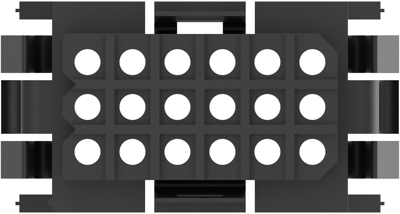

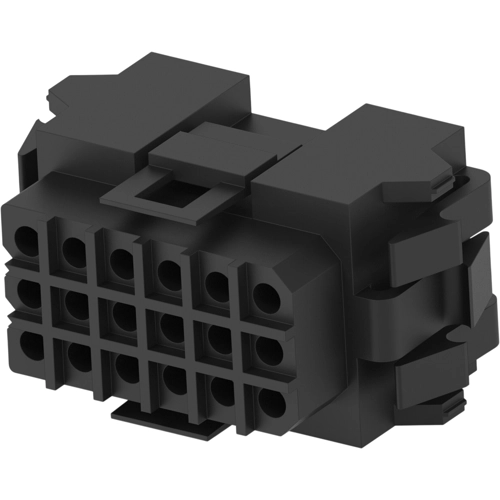

Plug housing, 18 pole, pitch 5 mm, straight, red, 207442-1
Unit Price (€ / pc.)
8.1158 € *
Available: 25 pcs.
Available in 5 Days: 268 pcs. - if ordered today
Total Price:
8.12 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1158 €
5 pcs.
7.6993 €
10 pcs.
7.1995 €
25 pcs.
6.5569 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 207442-1, AMP
Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 18 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Female
- Housing Material: PA 66
- Housing Color: red
- Number of positions: 18
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 14 A
- Centerline (Pitch): 5 mm
- Row-to-Row Spacing: 5 mm [0.197 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Colour | red | |
| Rated current | 14 A | |
| Number of rows | 6 | |
| Connection | crimp connection | |
| Pin number | 18 pole | |
| Orientation | straight | |
| Version | plug housing | |
| Type of locking | Yes | |
| Rated voltage | 150 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
