207441-7 | AMP

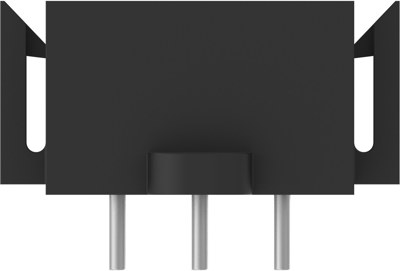

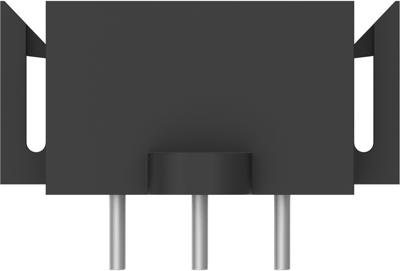

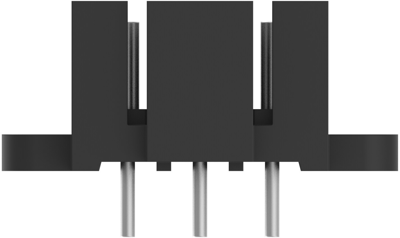

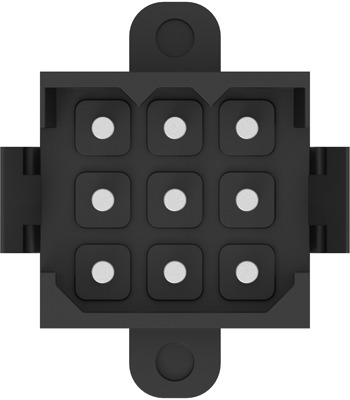

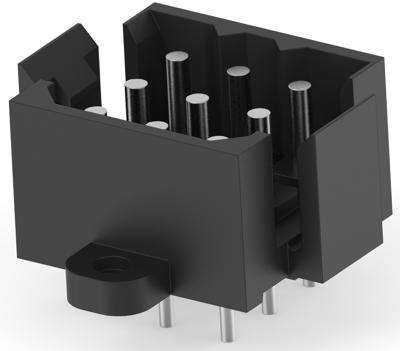

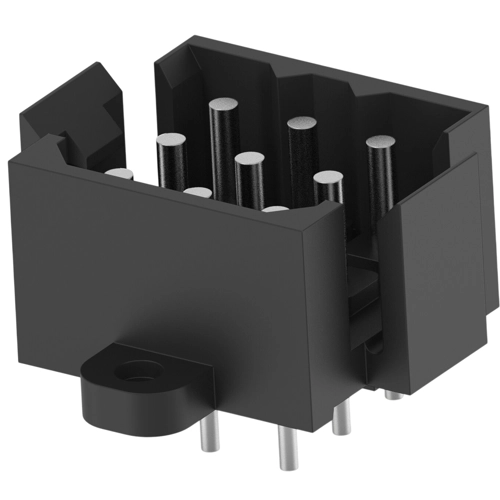

Pin header, 9 pole, pitch 5 mm, straight, red, 207441-7
Unit Price (€ / pc.)
10.6624 € *
Available: 0 pcs.
Leadtime: 37 Weeks **
PCB Connection System, 207441-7, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 9 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: red
- Orientation: straight
- Number of positions: 9
- Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
- Rated current: 7.5 A
- Centerline (Pitch): 5 mm
- Row-to-Row Spacing: 5 mm [0.197 in]
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 9-polig | |
| Grid | 5 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | verzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 150 V | |
| Rated current | 7.5 A | |
| Additional parts | bestückt | |
| Number of rows | 3 | |
| Breakable | No | |
| Colour | rot |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
