207398-7 | AMP

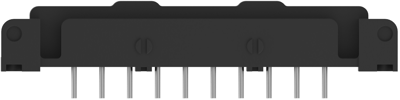

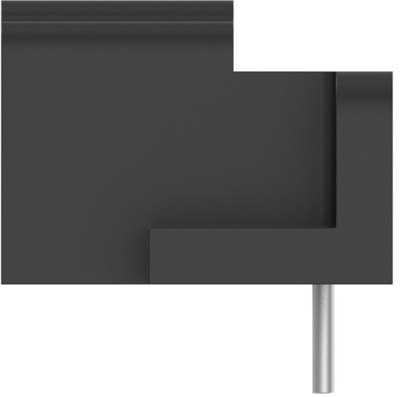

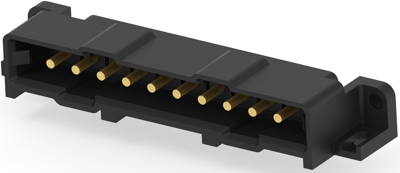

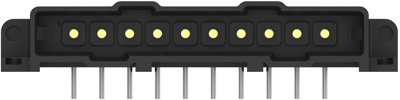

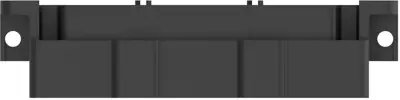

Pin header, 10 pole, pitch 5 mm, angled, black, 207398-7
Unit Price (€ / pc.)
19.4327 € *
Available: 18 pcs.
Available in 5 Days: 3,257 pcs. - if ordered today
Total Price:
19.43 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4327 €
10 pcs.
18.0404 €
25 pcs.
16.8385 €
50 pcs.
15.3034 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 207398-7, AMP
PCB Mount header, Right angle, Wire-to-Board, 10 Position, 5 mm .197 in Centerline, Fully Shrouded, Gold, Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Rated current | 7.5 A | |
| Connection plating | tin-plated | |
| Rated voltage | 600 V | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Pin number | 10 pole | |
| Grid | 5 mm | |
| Connection | solder connection | |
| Colour | black | |
| Version | pin header | |
| contact surface | gold-plated | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
