207398-6 | AMP

Pin header, 10 pole, pitch 5 mm, angled, red, 207398-6

Order No.: 39P1762
EAN: 4099889977400
MPN:
207398-6

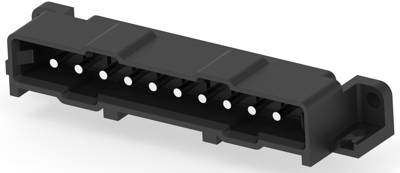

207398-6 AMP PCB Connection Systems Image 1

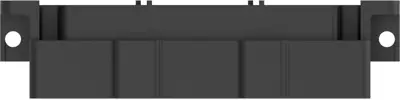

207398-6 AMP PCB Connection Systems Image 2

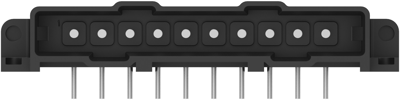

207398-6 AMP PCB Connection Systems Image 3

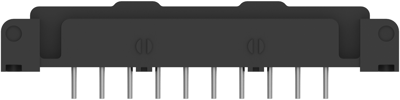

207398-6 AMP PCB Connection Systems Image 4
207398-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
23.5144 € *
Standard delivery time from the manufacturer is: 49 Weeks
Total Price:
23.51 € *
Price list
Quantity
Price per unit*
1 pcs.
23.5144 €
5 pcs.
22.3006 €
10 pcs.
20.8607 €
25 pcs.
19.0281 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 207398-6, AMP

Wire-to-Board, Printed Circuit Board, Right Angle, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: red
  • Orientation: angled
  • Number of positions: 10
  • Operating Temperature Range: -55 – 130 °C [-67 – 266 °F]
  • Rated current: 7.5 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 5 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 7.5 A
Rated voltage 150 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour red
Pin number 10 pole
Connection PCB connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
