205689-2 | AMP

Pin header, 28 pole, pitch 6.35 mm, straight, black, 205689-2

Order No.: 39P1584
EAN: 4099889976809
MPN:
205689-2

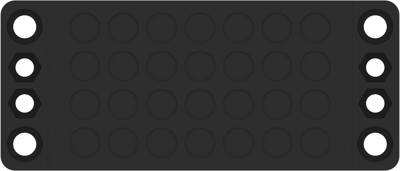

205689-2 AMP PCB Connection Systems Image 1

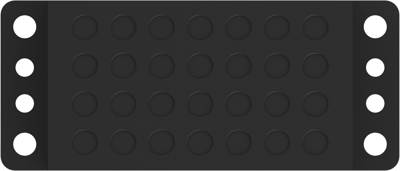

205689-2 AMP PCB Connection Systems Image 2

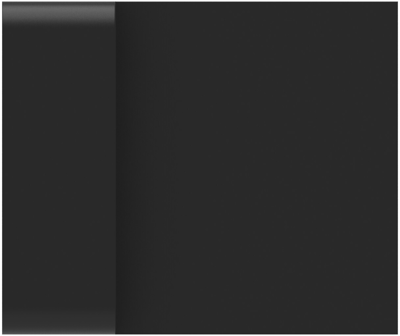

205689-2 AMP PCB Connection Systems Image 3

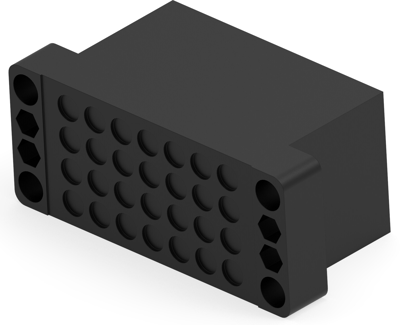

205689-2 AMP PCB Connection Systems Image 4

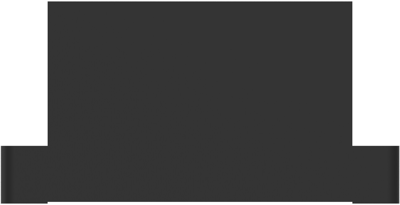

205689-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
24.3355 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
4,283.05 € *
*incl. VAT plus shipping costs
Subject to prior sale
176 pcs.
24.3355 €

PCB Connection System, 205689-2, AMP

Cable-to-Panel, Rectangular Power Connectors, 28 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Phenolic GF
  • Housing Color: black
  • Number of positions: 28
  • Operating Temperature Range: -55 – 150 °C [-67 – 302 °F]
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm
  • Sealable: No
Technical specifications
Filter Property Value
Colour black
Type of locking Yes
Rated current 13 A
Grid 6.35 mm
Pin number 28 pole
Version pin header
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type pin
Rated voltage 1.8 kV
Number of rows 4
Logistics
Property Value
Country of origin TW
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
