205043-1 | AMP

Socket header, 12 pole, pitch 11.43 mm, straight, black, 205043-1

Order No.: 39P1545
EAN: 4099889976687
MPN:
205043-1

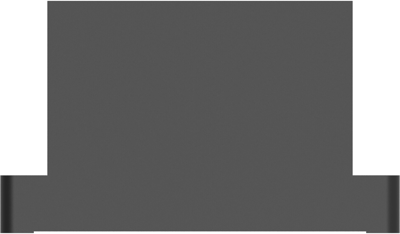

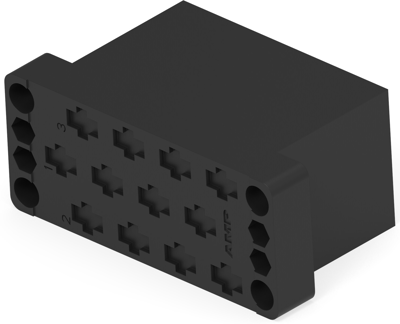

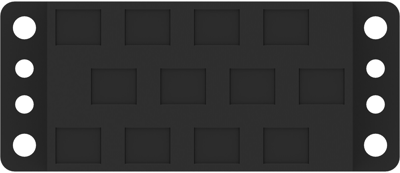

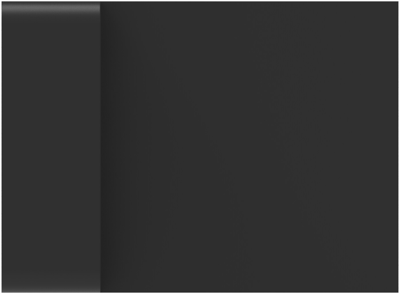

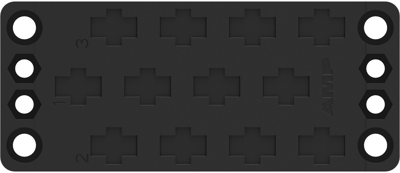

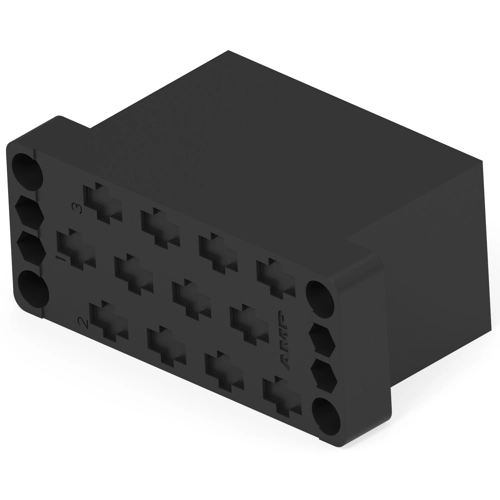

205043-1 AMP PCB Connection Systems Image 1
205043-1 AMP PCB Connection Systems Image 2
205043-1 AMP PCB Connection Systems Image 3
205043-1 AMP PCB Connection Systems Image 4
205043-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
36.4616 € *
Available in 5 Days: 283 pcs. - if ordered today
Total Price:
36.46 € *
Price list
Quantity
Price per unit*
1 pcs.
36.4616 €
5 pcs.
34.5695 €
10 pcs.
32.3442 €
25 pcs.
29.4882 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 205043-1, AMP

Cable-to-Cable,Cable-to-Panel, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Female
  • Housing Material: Phenolic GF
  • Housing Color: black
  • Number of positions: 12
  • Operating Temperature Range: -55 – 150 °C [-67 – 302 °F]
  • Sealable: No
Technical specifications
Filter Property Value
Version socket housing
Colour black
Type of locking Yes
Pin number 12 pole
Additional parts unequipped
Connection crimp connection
Rated voltage 1.8 kV
Contact type socket
Rated current 35 A
contact surface gold-plated
Orientation straight
Grid 11.43 mm
Number of rows 3
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
