2029178-5 | AMP

Socket header, 5 pole, pitch 4.2 mm, straight, white, 2029178-5

Order No.: 35P5547
EAN: 4099889939569
MPN:
2029178-5
Series: VAL-U-LOK

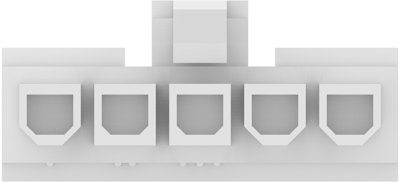

2029178-5 AMP PCB Connection Systems Image 1

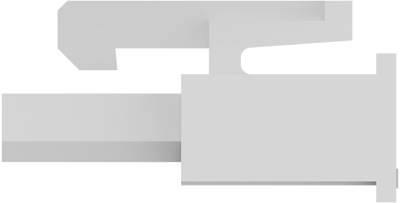

2029178-5 AMP PCB Connection Systems Image 2

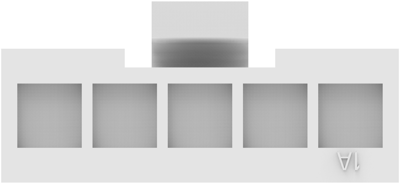

2029178-5 AMP PCB Connection Systems Image 3

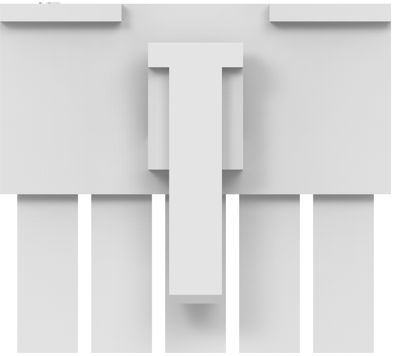

2029178-5 AMP PCB Connection Systems Image 4

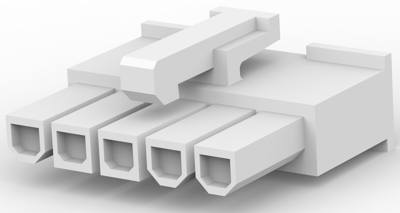

2029178-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2249 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
3,148.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
14000 pcs.
0.2249 €

PCB Connection System, 2029178-5, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Female
  • Housing Material: Nylon 6
  • Housing Color: white
  • Number of positions: 5
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Sealable: No
Technical specifications
Filter Property Value
Rated voltage 600 V
Orientation straight
Pin number 5 pole
Version socket header
Colour white
Grid 4.2 mm
Type of locking Yes
Contact type socket
Number of rows 1
Connection crimp connection
Additional parts unequipped
Logistics
Property Value
Country of origin TW
Customs tariff number 85389091
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
