2029047-4 | AMP

Socket header, 4 pole, pitch 3 mm, straight, black, 2029047-4

Order No.: 34P9405
EAN: 4099889919004
MPN:
2029047-4

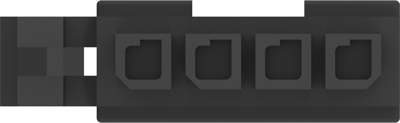

2029047-4 AMP PCB Connection Systems Image 1

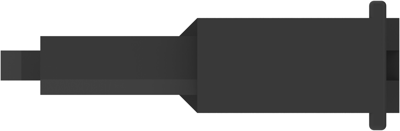

2029047-4 AMP PCB Connection Systems Image 2

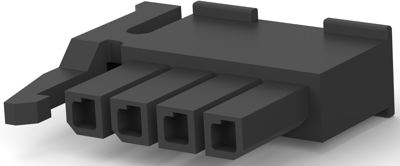

2029047-4 AMP PCB Connection Systems Image 3

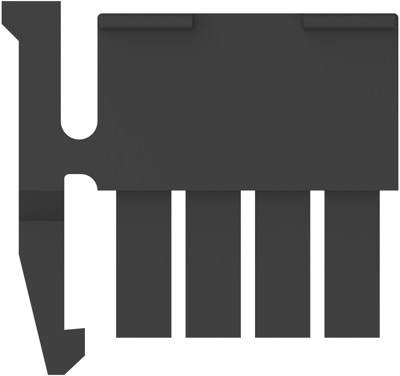

2029047-4 AMP PCB Connection Systems Image 4

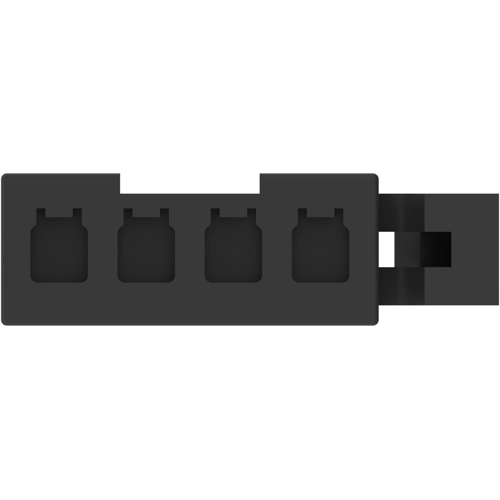

2029047-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.6426 € *
Available: 5,000 pcs.
Total Price:
0.64 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6426 €
10 pcs.
0.5950 €
50 pcs.
0.5474 €
100 pcs.
0.4879 €
1000 pcs.
0.4641 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2029047-4, AMP

Wire-to-Board, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 4
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 3 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour black
Type of locking Yes
Rated current 5 A
Grid 3 mm
Pin number 4 pole
Version socket header
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
