202800-1 | AMP

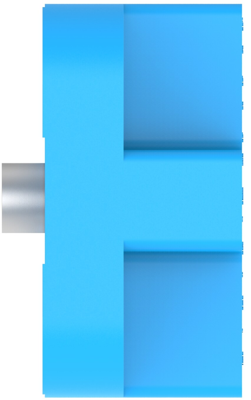

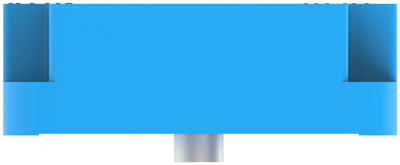

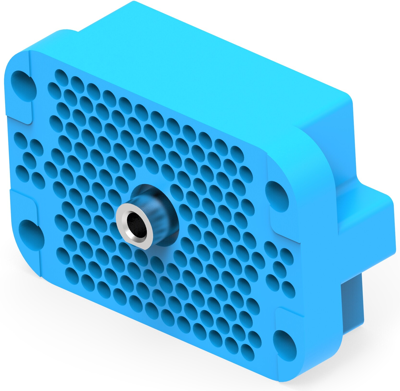

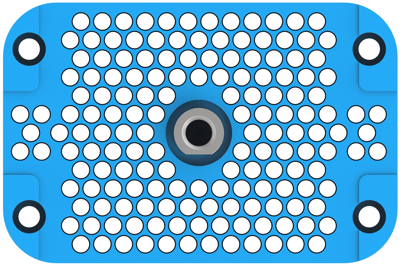

Socket housing, 160 pole, pitch 3.81 mm, straight, blue, 202800-1
Order No.: 71P4492
EAN: 4099891724221
MPN:
202800-1
Unit Price (€ / pc.)
228.5633 € *
Available in 5 Days: 249 pcs. - if ordered today
Total Price:
228.56 € *
Price list
Quantity
Price per unit*
1 pcs.
228.5633 €
3 pcs.
224.3388 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 202800-1, AMP
The 202800-1 is a rectangular power connector that utilizes jackscrews, a two-piece short shield, a strain relief clamp, a pin hood for pin protection and guide hardware.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Contact type | socket | |
| Pin number | 160 pole | |
| Grid | 3.81 mm | |
| Connection | crimp connection | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Rated current | 13 A | |
| Number of rows | 13 | |
| Colour | blue |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | tris(2-methoxyethoxy)vinylsilane |
| SVHC free | No |
