201692-6 | AMP

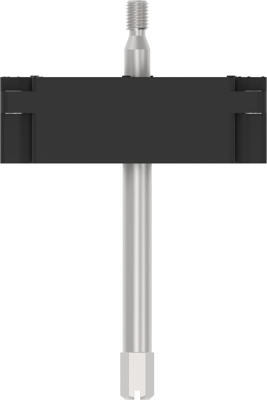

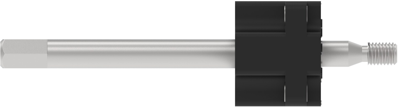

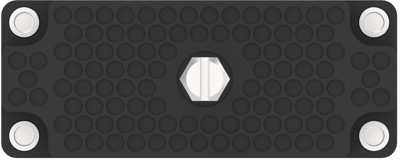

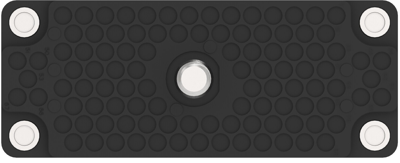

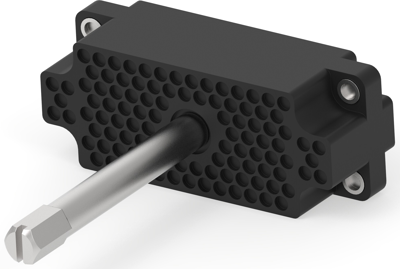

Pin header, 104 pole, pitch 3.81 mm, straight, black, 201692-6
Order No.: 39P1672
EAN: 4099889976830
MPN:
201692-6
Unit Price (€ / pc.)
254.8147 € *
Available in 5 Days: 28 pcs. - if ordered today
Total Price:
254.81 € *
Price list
Quantity
Price per unit*
1 pcs.
254.8147 €
2 pcs.
250.4117 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 201692-6, AMP
Cable-to-Cable,Cable-to-Panel, Wire & Cable, 104 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Phenolic GF
- Housing Color: black
- Number of positions: 104
- Operating Temperature Range: -55 – 150 °C [-65 – 125 °F]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Pin number | 104 pole | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Number of rows | 8 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated current | 13 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
