201692-3 | AMP

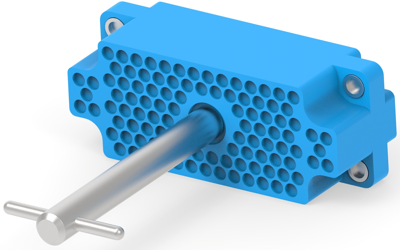

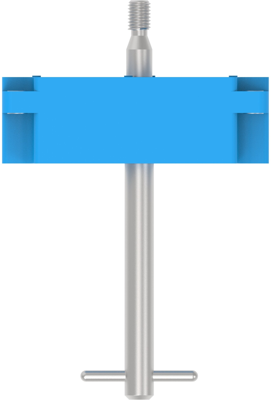

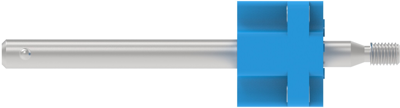

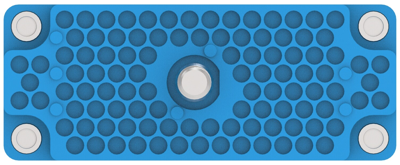

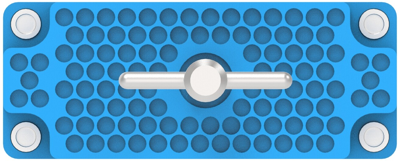

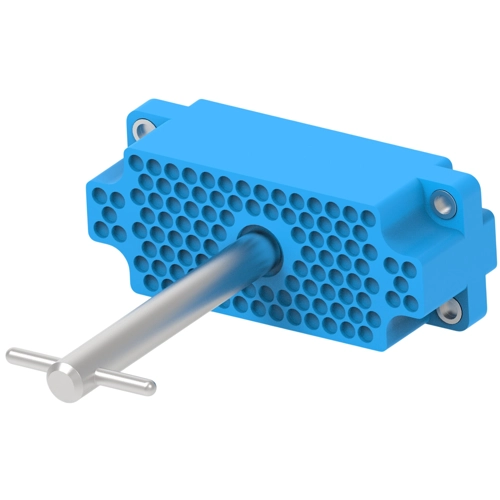

Pin header, 104 pole, pitch 3.81 mm, straight, blue, 201692-3
Order No.: 39P1674
EAN: 4099889976854
MPN:
201692-3
Unit Price (€ / pc.)
261.1931 € *
Available in 5 Days: 20 pcs. - if ordered today
PCB Connection System, 201692-3, AMP
Cable-to-Cable,Cable-to-Panel, Wire & Cable, 104 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Diallyl Phthalate
- Housing Color: blue
- Number of positions: 104
- Operating Temperature Range: -65 – 125 °C [-85 – 257 °F]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | pin | |
| Grid | 3.81 mm | |
| Colour | blue | |
| Version | pin header | |
| Additional parts | unequipped | |
| Rated current | 13 A | |
| Number of rows | 8 | |
| Pin number | 104 pole | |
| Orientation | straight | |
| Connection | crimp connection | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
