201692-2 | AMP

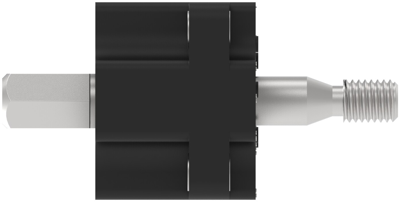

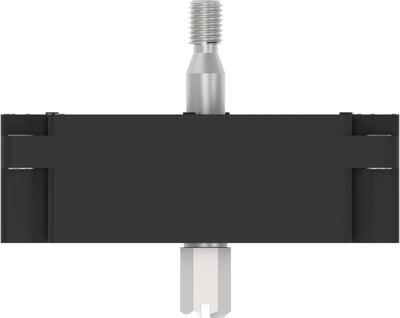

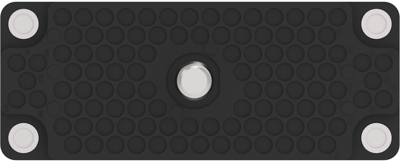

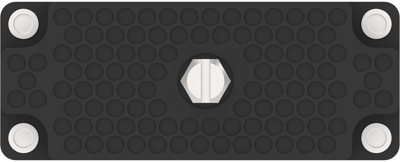

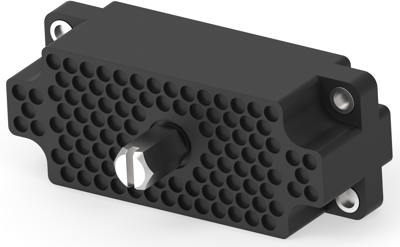

Pin header, 104 pole, pitch 3.81 mm, straight, black, 201692-2
Order No.: 39P1675
EAN: 4099889976861
MPN:
201692-2
Unit Price (€ / pc.)
134.1725 € *
Available in 5 Days: 20 pcs. - if ordered today
PCB Connection System, 201692-2, AMP
Cable-to-Cable,Cable-to-Panel, Wire & Cable, 104 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Phenolic GF
- Housing Color: black
- Number of positions: 104
- Operating Temperature Range: -55 – 150 °C [-65 – 125 °F]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Pin number | 104 pole | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Number of rows | 8 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated current | 13 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
