201355-1 | AMP

Pin header, 14 pole, pitch 3.3 mm, straight, black, 201355-1

Order No.: 39P1573
EAN: 4099889976755
MPN:
201355-1

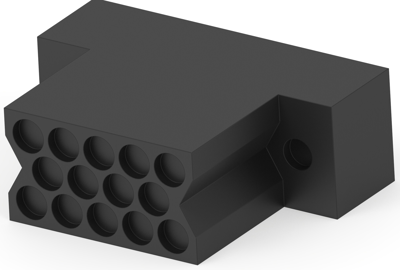

201355-1 AMP PCB Connection Systems Image 1

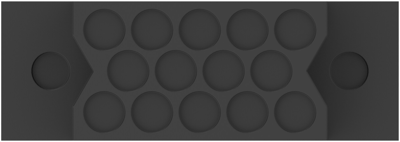

201355-1 AMP PCB Connection Systems Image 2

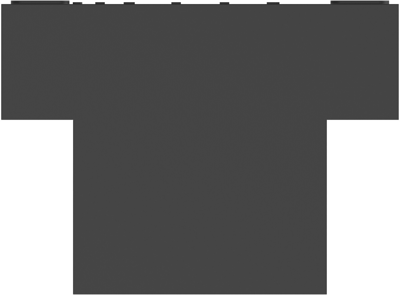

201355-1 AMP PCB Connection Systems Image 3

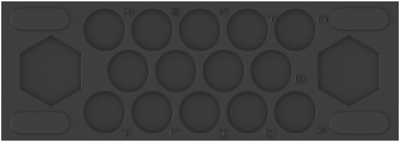

201355-1 AMP PCB Connection Systems Image 4

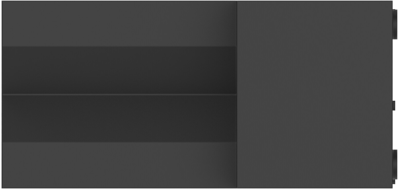

201355-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
31.4398 € *
Available in 5 Days: 513 pcs. - if ordered today
Total Price:
31.44 € *
Price list
Quantity
Price per unit*
1 pcs.
31.4398 €
5 pcs.
29.8095 €
10 pcs.
27.8936 €
25 pcs.
25.4303 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 201355-1, AMP

Cable-to-Cable,Cable-to-Panel, Wire & Cable, 14 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Male
  • Housing Material: Phenolic GF
  • Housing Color: black
  • Number of positions: 14
  • Operating Temperature Range: -55 – 150 °C [-67 – 302 °F]
  • Centerline (Pitch): 3.3 mm
  • Row-to-Row Spacing: 3.3 mm
  • Sealable: No
Technical specifications
Filter Property Value
Pin number 14 pole
Number of rows 3
Type of locking Yes
Colour black
Rated current 13 A
Connection crimp connection
Orientation straight
Additional parts unequipped
Rated voltage 250 V
Contact type pin
Grid 3.3 mm
Version pin header
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
