200512-2 | AMP

Socket header, 26 pole, pitch 3.81 mm, straight, black, 200512-2

Order No.: 39P1562
EAN: 4099889976724
MPN:
200512-2

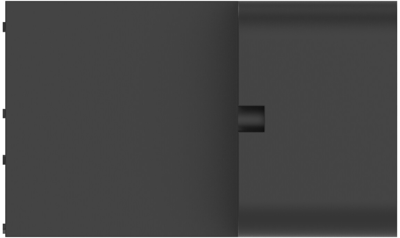

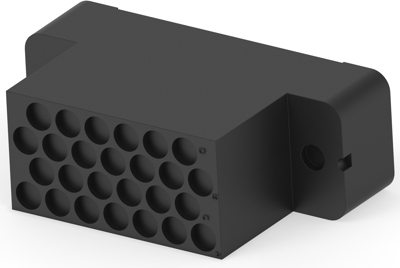

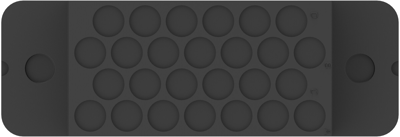

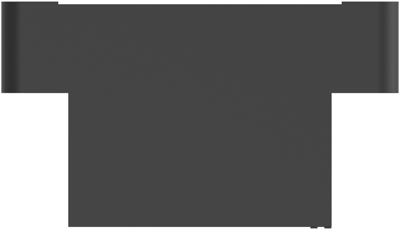

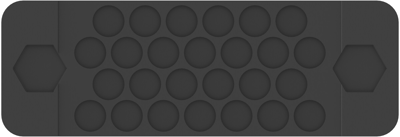

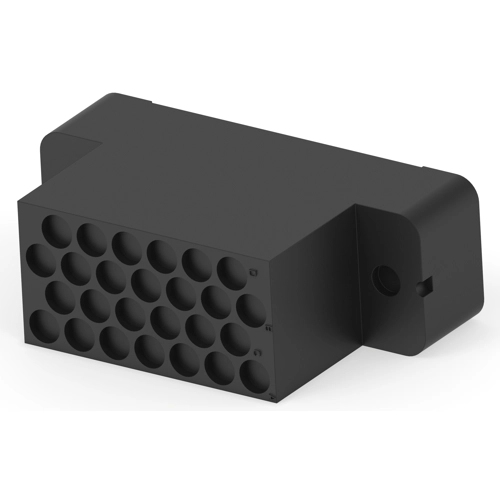

200512-2 AMP PCB Connection Systems Image 1
200512-2 AMP PCB Connection Systems Image 2
200512-2 AMP PCB Connection Systems Image 3
200512-2 AMP PCB Connection Systems Image 4
200512-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
12.9591 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
2,462.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
190 pcs.
12.9591 €

PCB Connection System, 200512-2, AMP

Cable-to-Cable,Cable-to-Panel, Wire & Cable, 26 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Female
  • Housing Material: Phenolic
  • Housing Color: black
  • Number of positions: 26
  • Operating Temperature Range: -55 – 150 °C [-67 – 302 °F]
  • Centerline (Pitch): 3.3 mm
  • Sealable: No
Technical specifications
Filter Property Value
Colour black
Type of locking Yes
Rated current 13 A
Grid 3.81 mm
Pin number 26 pole
Version socket header
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 4
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
