200346-2 | AMP

Socket header, 20 pole, pitch 3.3 mm, straight, black, 200346-2

Order No.: 39P1561
EAN: 4099889976717
MPN:
200346-2

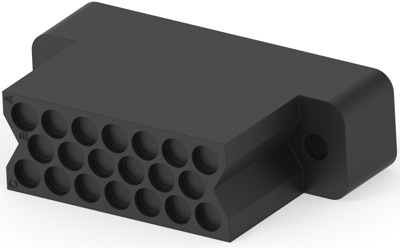

200346-2 AMP PCB Connection Systems Image 1

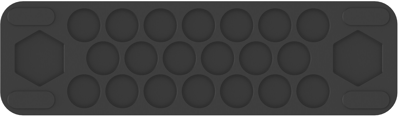

200346-2 AMP PCB Connection Systems Image 2

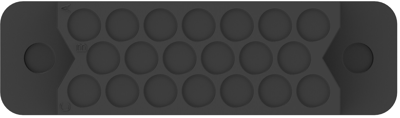

200346-2 AMP PCB Connection Systems Image 3

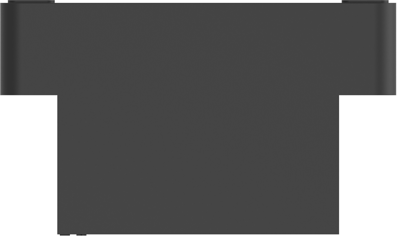

200346-2 AMP PCB Connection Systems Image 4

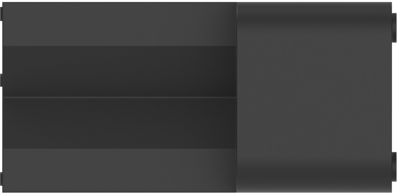

200346-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
42.5187 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
42.52 € *
Price list
Quantity
Price per unit*
1 pcs.
42.5187 €
5 pcs.
40.3172 €
10 pcs.
37.7111 €
25 pcs.
34.3910 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 200346-2, AMP

Cable-to-Cable,Cable-to-Panel, Wire & Cable, 20 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Female
  • Housing Material: Phenolic GF
  • Housing Color: black
  • Number of positions: 20
  • Operating Temperature Range: -55 – 150 °C [-67 – 302 °F]
  • Centerline (Pitch): 3.3 mm
  • Sealable: No
Technical specifications
Filter Property Value
Number of rows 3
Rated voltage 250 V
Pin number 20 pole
Orientation straight
Rated current 13 A
Contact type socket
Version socket header
Grid 3.3 mm
Connection crimp connection
Colour black
Logistics
Property Value
Country of origin TW
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
