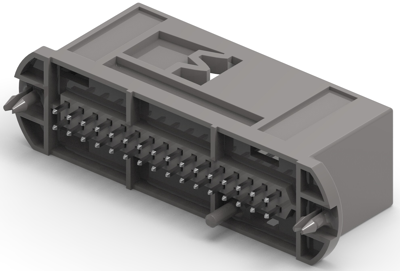

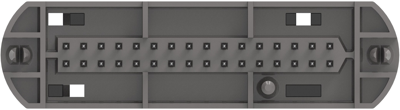

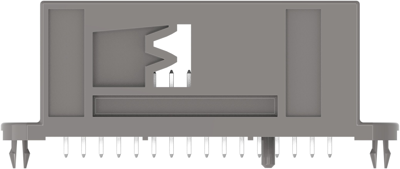

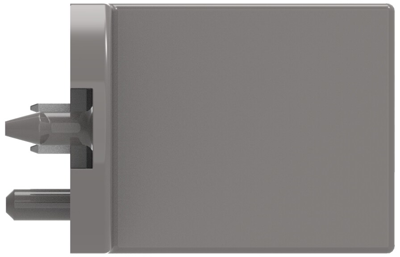

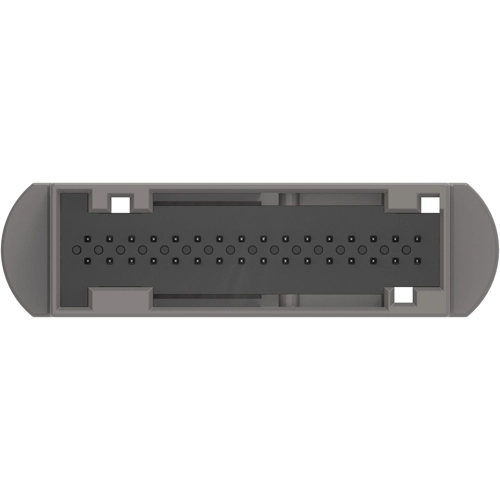

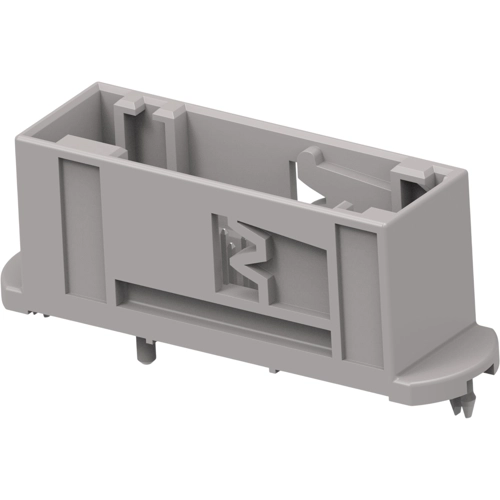

Automotive Headers, 2-966658-3, AMP
Hybrid Header: No, Connector System: Wire-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Signal Positions: 32, Number of Positions: 32, PCB Mount Orientation: Vertical, Number of Rows: 2, Nominal Voltage Architecture: 12 V, Primary Product Color: Gray, Mating Tab Width: .63 mm, Mating Tab Thickness: .63 mm, Contact Mating Area Plating Material: Tin (Sn), Termination Method to Printed Circuit Board: Through Hole - Solder, PCB Mount Retention Type: Boardlock, Centerline (Pitch): 2.54 mm, Product Length: 57.6 mm, Operating Temperature (Max): 65 °C,70 °C,75 °C,80 °C,85 °C,90 °C,100 °C, Operating Temperature Range: -30 – 100 °C, Shielded: No, Circuit Application: Signal, UL Flammability Rating: UL 94HB
