2-917809-2 | AMP

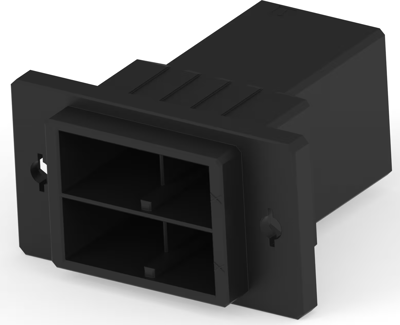

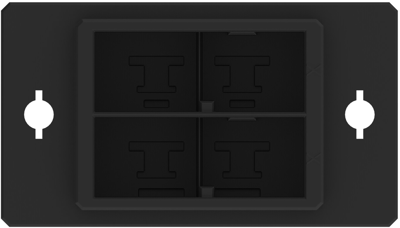

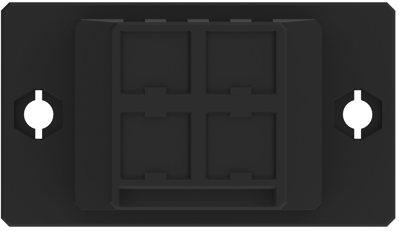

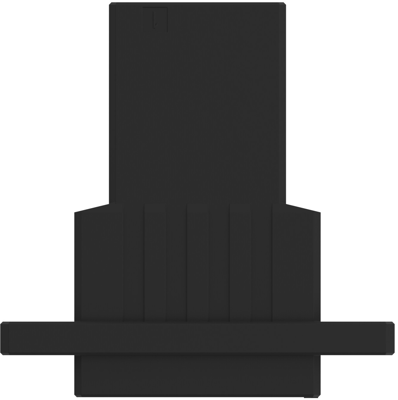

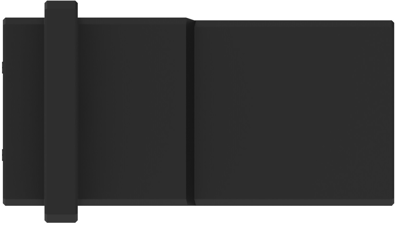

Plug housing, 4 pole, pitch 10.16 mm, straight, black, 2-917809-2
Unit Price (€ / pc.)
5.4502 € *
Standard delivery time from the manufacturer is: 33 Weeks
Total Price:
5.45 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4502 €
10 pcs.
5.0575 €
25 pcs.
4.7243 €
50 pcs.
4.2959 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-917809-2, AMP
Wire-to-Panel, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 10.16 mm
- Row-to-Row Spacing: 10.16 mm [0.399 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Colour | black | |
| Pin number | 4 pole | |
| Contact type | tab | |
| Orientation | straight | |
| Rated voltage | 630 V | |
| Version | plug housing | |
| Rated current | 30 A | |
| Number of rows | 2 | |
| Grid | 10.16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
