2-917808-2 | AMP

Plug housing, 4 pole, pitch 10.16 mm, straight, black, 2-917808-2

Order No.: 38P7415
EAN: 4099889976403
MPN:
2-917808-2
Series: DYNAMIC

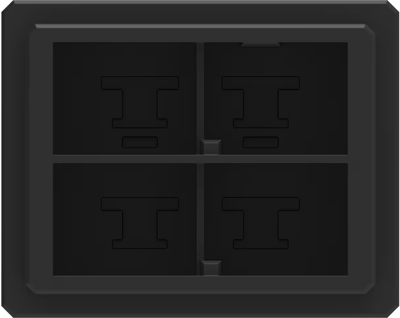

2-917808-2 AMP PCB Connection Systems Image 1

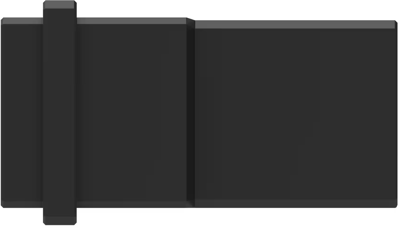

2-917808-2 AMP PCB Connection Systems Image 2

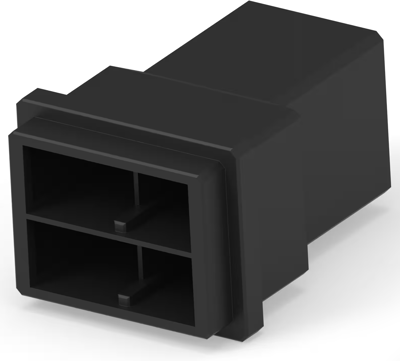

2-917808-2 AMP PCB Connection Systems Image 3

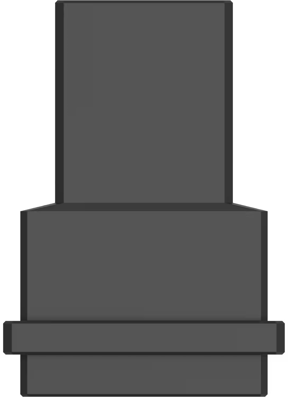

2-917808-2 AMP PCB Connection Systems Image 4

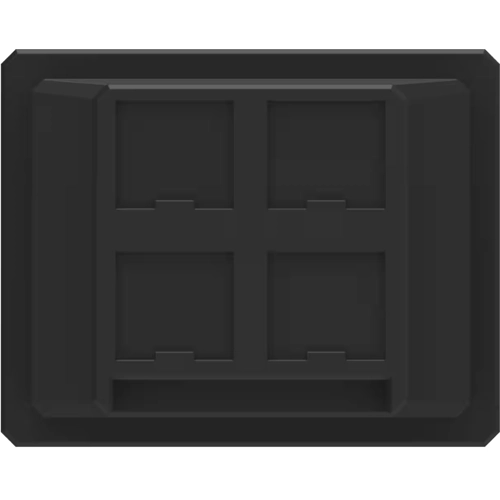

2-917808-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.0337 € *
Available in 5 Days: 2,566 pcs. - if ordered today
Total Price:
5.03 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0337 €
10 pcs.
4.6767 €
25 pcs.
4.3673 €
50 pcs.
3.9627 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-917808-2, AMP

Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 10.16 mm
  • Row-to-Row Spacing: 10.16 mm [0.399 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Additional parts unequipped
Orientation straight
Pin number 4 pole
Connection crimp connection
Rated current 30 A
Colour black
Grid 10.16 mm
Number of rows 2
Rated voltage 630 V
Version plug housing
Contact type pin
Logistics
Property Value
Customs tariff number 85472000
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
