2-917659-6 | AMP

Socket header, 12 pole, pitch 5.08 mm, straight, black, 2-917659-6

Order No.: 38P7056
EAN: 4099889974768
MPN:
2-917659-6
Series: DYNAMIC

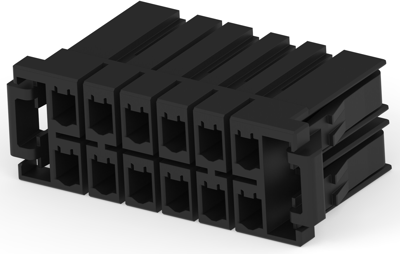

2-917659-6 AMP PCB Connection Systems Image 1

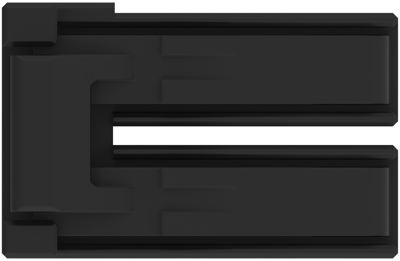

2-917659-6 AMP PCB Connection Systems Image 2

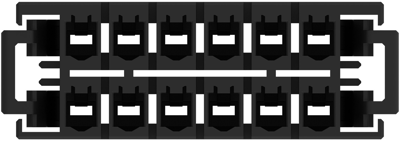

2-917659-6 AMP PCB Connection Systems Image 3

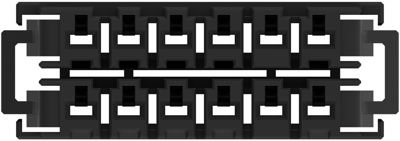

2-917659-6 AMP PCB Connection Systems Image 4

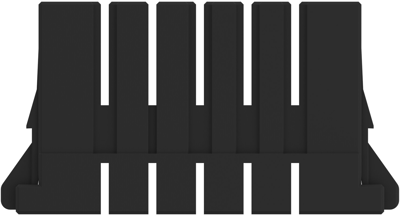

2-917659-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.4038 € *
Available in 5 Days: 619 pcs. - if ordered today
Total Price:
2.40 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4038 €
10 pcs.
2.1896 €
50 pcs.
1.9754 €
100 pcs.
1.7731 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-917659-6, AMP

Wire-to-Board, Wire-to-Panel, Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 5.08 mm
  • Row-to-Row Spacing: 7.62 mm [0.299 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Colour black
Grid 5.08 mm
Pin number 12 pole
Version socket header
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 600 V
Number of rows 2
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
