2-917541-2 | AMP

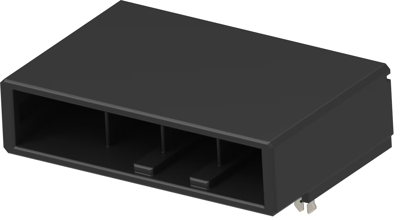

Pin header, 4 pole, pitch 10.16 mm, angled, black, 2-917541-2
Unit Price (€ / pc.)
20.4085 € *
Available: 19 pcs.
Available in 5 Days: 2,069 pcs. - if ordered today
Total Price:
20.41 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4085 €
5 pcs.
19.3494 €
10 pcs.
18.0999 €
25 pcs.
16.5053 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 2-917541-2, AMP
PCB Mount header, Horizontal, Wire-to-Board, 4 Position, 10.16 mm Centerline, Fully shrouded, Gold, Through Hole-Solder.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Grid | 10.16 mm | |
| Orientation | angled | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated current | 30 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 4 pole | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Number of rows | 1 | |
| Colour | black | |
| Rated voltage | 630 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
