2-87175-1 | AMP

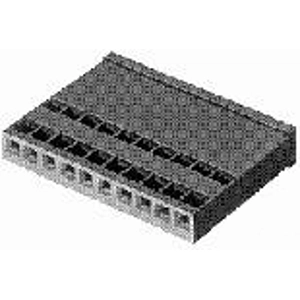

Socket housing, 10 pole, pitch 2.54 mm, straight, black, 2-87175-1
Unit Price (€ / pc.)
8.9488 € *
Available in 5 Days: 1,984 pcs. - if ordered today
Total Price:
8.95 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9488 €
10 pcs.
8.3062 €
25 pcs.
7.7588 €
50 pcs.
7.0448 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-87175-1, AMP
Wire-to-Board, Wire & Cable, 10 Position
Technical Data
- Contact Type: Female
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 10
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| Rated voltage | 250 V | |
| Version | socket housing | |
| Number of rows | 1 | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Pin number | 10 pole | |
| Grid | 2.54 mm | |
| Type of locking | Yes | |
| Contact type | socket | |
| Colour | black | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
