2-829822-0 | AMP
Pin header, 40 pole, pitch 2.54 mm, straight, green, 2-829822-0
Unit Price (€ / pc.)
20.7060 € *
Available in 5 Days: 273 pcs. - if ordered today
Total Price:
207.06 € *
Price list
Quantity
Price per unit*
10 pcs.
20.7060 €
24 pcs.
20.3252 €
*incl. VAT plus shipping costs
Subject to prior sale
Single-row spacer pin headers, type TE Connectivity/AMP Modu ..-082../..-096.
For mating series HV 100 female contact housings; Finish insertion side: 0.8 µ gold-plating (dimension F) on 1.27 µ nickel primer; other areas 1.27 µ nickel. Soldering side: 2.0 µ tin plating on 1.27 µ nickel primer.
Dual-row, type ..-082../..-096.

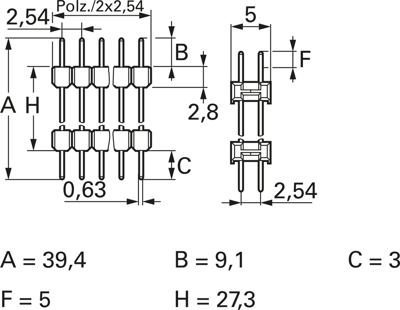

Technical attributes (type, number of poles): 2-0829822-0, 2 x 20-pole, A 39.4 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Breakable | Yes | |
| Colour | green | |
| Connection | PCB connection | |
| Pin number | 40 pole | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Grid | 2.54 mm | |
| Version | pin header | |
| Number of rows | 2 | |
| Contact type | pin | |
| Rated current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
