2-826576-0 | AMP
Pin header, 20 pole, pitch 3.96 mm, straight, green, 2-826576-0
Unit Price (€ / pc.)
24.0618 € *
Available: 7 pcs.
Total Price:
24.06 € *
Price list
Quantity
Price per unit*
1 pcs.
24.0618 €
2 pcs.
22.5148 €
5 pcs.
21.1463 €
10 pcs.
19.6588 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers, 3 to 20 poles, type Modu I.
With 3.96 mm grid. For PCBs up to 1.6 mm thickness. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: brass contacts, contact area 0.8 µ gold-plated on nickel primer (dimension F) and the solder area is 2.5 µ tinned over nickel, or with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

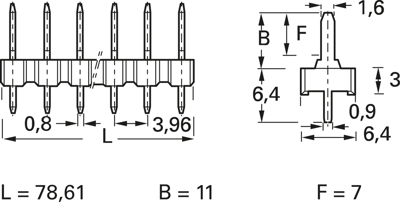

Tinned, pin length B 11.0 mm, type ..-0826.
Pins tinned in the contact and solder area; Dimension F: 7.0 mm.
Type: 2-0826576-0, 20-pole, 78.61 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-lead | |
| Breakable | Yes | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 20 pole | |
| Contact type | pin | |
| Grid | 3.96 mm | |
| Rated current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
