2-825433-0 | AMP
Pin header, 20 pole, pitch 2.54 mm, straight, green, 2-825433-0
Unit Price (€ / pc.)
2.0349 € *
Available: 318 pcs.
Total Price:
2.03 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0349 €
25 pcs.
1.7017 €
100 pcs.
1.5827 €
250 pcs.
1.5113 €
1000 pcs.
1.3685 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers for PCB mounting, single-row, TE Connectivity AMP Modu II, type ..-0825../..-0828.

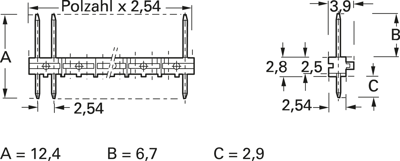

With 2.54 mm grid. Suitable for parallel stacking. With 0.63 x 0.63 mm solder pins and latching notches. Match Modu IV socket headers with interlock; Insulating body: polyester GV, green, inflammability to UL 94 V-0. Insertion zone 0.8 µm gold-plated or 2.5 µm tinned on nickel primer. Tinned solder pins. Dimensions: A 12.4 mm, B 6.7 mm, C 2.9 mm.
Straight single-row, type ..-0825../..-0828.
Technical attributes (type, number of poles, contact finish): 2-0825433-0, 20-pole, gold-plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Colour | green | |
| Type of locking | Yes | |
| Pin number | 20 pole | |
| Additional parts | equipped | |
| Breakable | Yes | |
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 3 A | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Grid | 2.54 mm | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
