2-794954-2 | AMP

Socket header, 22 pole, pitch 4.2 mm, straight, natural, 2-794954-2

Order No.: 35P5490
EAN: 4099889939095
MPN:
2-794954-2
Series: VAL-U-LOK

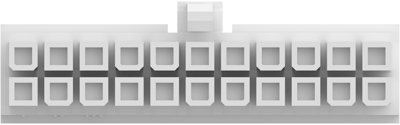

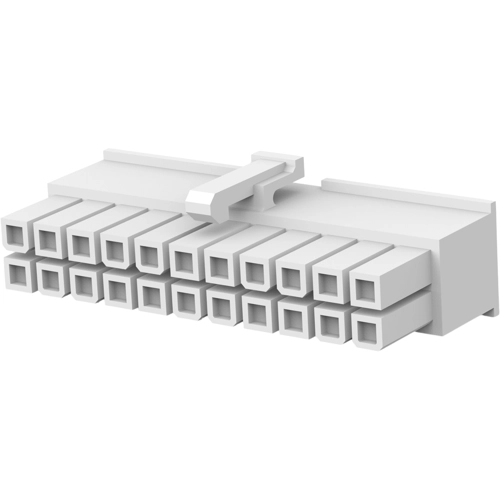

2-794954-2 AMP PCB Connection Systems Image 1

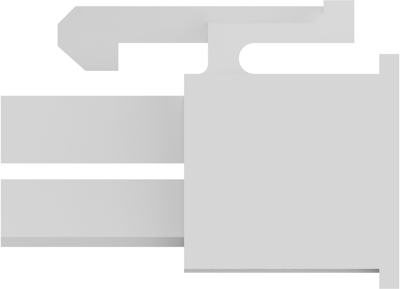

2-794954-2 AMP PCB Connection Systems Image 2

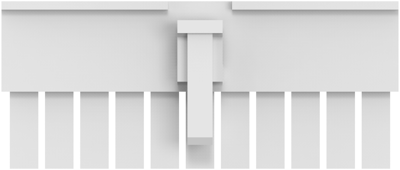

2-794954-2 AMP PCB Connection Systems Image 3

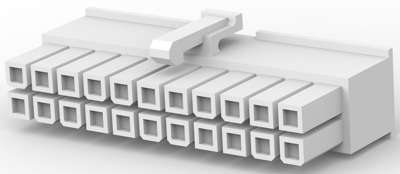

2-794954-2 AMP PCB Connection Systems Image 4

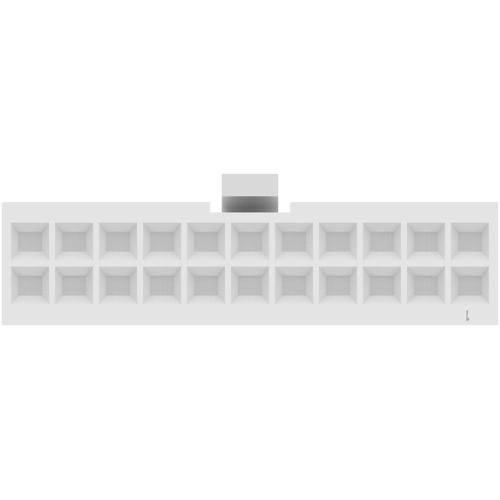

2-794954-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
0.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.4165 €

PCB Connection System, 2-794954-2, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 22 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 22
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour natural
Type of locking Yes
Rated current 9 A
Grid 4.2 mm
Pin number 22 pole
Version socket header
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
