2-794617-4 | AMP

Socket housing, 24 pole, pitch 3 mm, straight, black, 2-794617-4

Order No.: 71F5646
EAN: 4099891010027
MPN:
2-794617-4
2-0794617-4

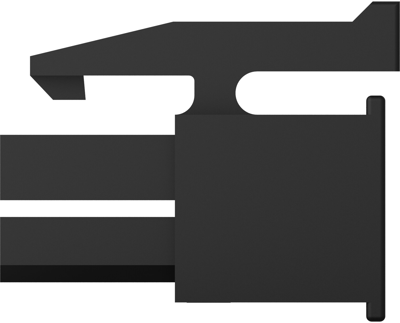

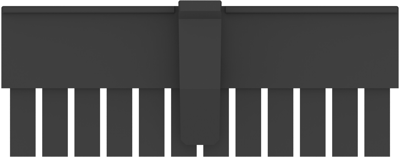

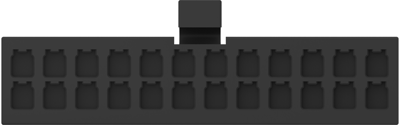

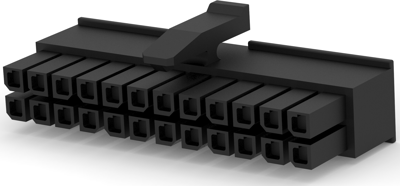

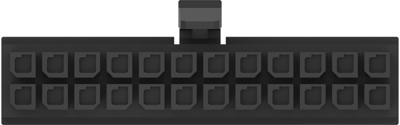

2-794617-4 AMP PCB Connection Systems Image 1
2-794617-4 AMP PCB Connection Systems Image 2
2-794617-4 AMP PCB Connection Systems Image 3
2-794617-4 AMP PCB Connection Systems Image 4
2-794617-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.3562 € *
Available: 214 pcs.
Available in 5 Days: 2,008 pcs. - if ordered today
Total Price:
11.78 € *
Price list
Quantity
Price per unit*
5 pcs.
2.3562 €
10 pcs.
2.1777 €
25 pcs.
2.0349 €
50 pcs.
1.8445 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.

3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.

Female connector housings, dual-row, bare, type ..-794.

Made of Nylon, flame retardant to UL 94 V-0.

Technical attributes (type, number of poles, length): 2-0794617-4, 24-pole, 37.0 mm

Technical specifications
Filter Property Value
Grid 3 mm
Contact type socket
Version socket housing
Rated current 5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 2
Colour black
Pin number 24 pole
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
