2-6450880-5 | AMP

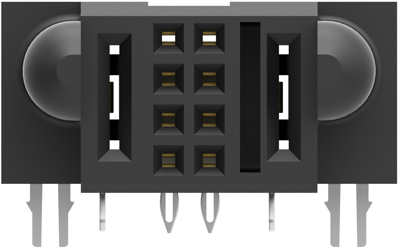

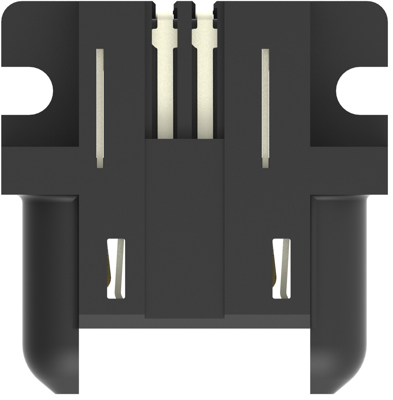

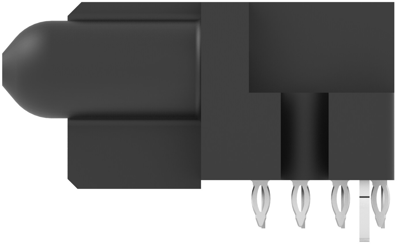

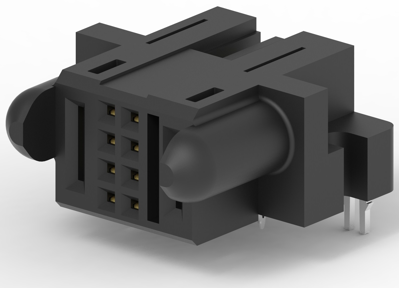

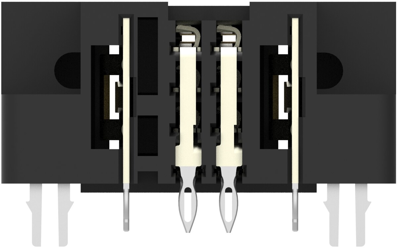

Socket header, 10 pole, pitch 2.54 mm, angled, black, 2-6450880-5
Order No.: 71P6909
EAN: 4099891728854
MPN:
2-6450880-5
Unit Price (€ / pc.)
9.7818 € *
Available in 5 Days: 440 pcs. - if ordered today
Total Price:
244.55 € *
Price list
Quantity
Price per unit*
25 pcs.
9.7818 €
50 pcs.
9.5795 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket header, 2-6450880-5, AMP
Rectangular power connector, Connector assembly, Receptacle, Board-to-Board, 10 Position, 2.54 mm Centerline, Printed circuit board, UL 94V-0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | gold-plated | |
| Pin number | 10 pole | |
| Rated voltage | 60 V | |
| Connection plating | tin-plated | |
| Orientation | angled | |
| Contact type | socket | |
| Grid | 2.54 mm | |
| Number of rows | 4 | |
| Additional parts | equipped | |
| Connection | press-fit | |
| Rated current | 50 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
