2-6450120-3 | AMP

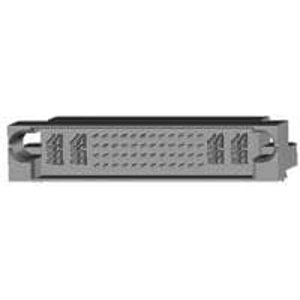

Pin header, 52 pole, pitch 2.54 mm, angled, black, 2-6450120-3
Order No.: 71P6888
EAN: 4099891728755
MPN:
2-6450120-3
Unit Price (€ / pc.)
17.1003 € *
Available in 5 Days: 957 pcs. - if ordered today
Total Price:
17.10 € *
Price list
Quantity
Price per unit*
1 pcs.
17.1003 €
10 pcs.
15.8746 €
25 pcs.
14.8155 €
50 pcs.
13.4708 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 2-6450120-3, AMP
Rectangular power connector, Header, Plug, Board-to-Board, 52 Position, 6.35 mm / 2.54 mm Centerline, Printed circuit board.
Applications
- Power supplies
- High end computer
- Data storage equipment
- Telecommunications switch
- Removable battery packs
- Power distribution
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 42 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Pin number | 52 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated voltage | 200 V | |
| Number of rows | 4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
