2-644489-5 | AMP

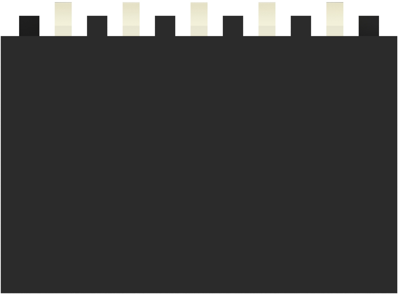

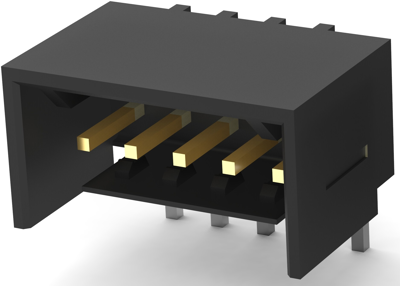

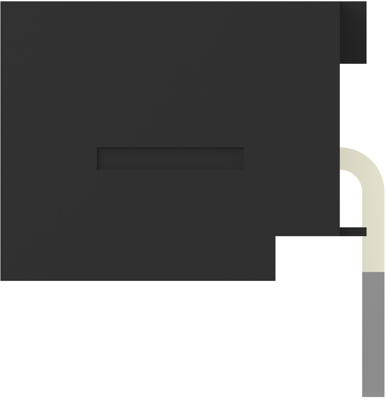

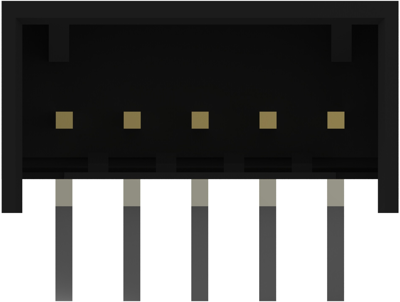

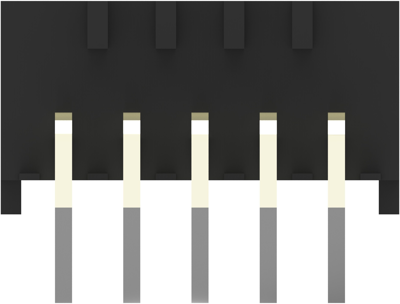

Pin header, 5 pole, pitch 2.54 mm, angled, black, 2-644489-5
Unit Price (€ / pc.)
5.2122 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
5.21 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2122 €
10 pcs.
4.8433 €
25 pcs.
4.5220 €
50 pcs.
4.1055 €
*incl. VAT plus shipping costs
Subject to prior sale
Header assembly, 2-644489-5, AMP
The 2-644489-5 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.
Features
- One-step assembly
- No wire stripping
- No contact damage
- Reduced wiring errors
- Simpler tooling
- Simple maintenance and repair
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | pin | |
| Connection plating | gold-plated | |
| contact surface | gold-plated | |
| Version | pin header | |
| Rated current | 5 A | |
| Rated voltage | 250 V | |
| Orientation | angled | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 5 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
