2-644489-2 | AMP

Pin header, 2 pole, pitch 2.54 mm, angled, black, 2-644489-2

Order No.: 71P6884
EAN: 4099891728717
MPN:
2-644489-2
Series: MTA-100

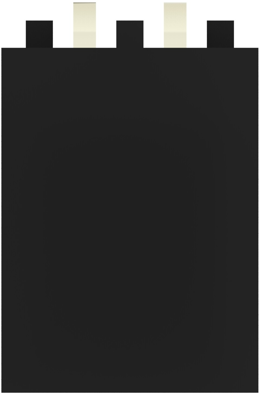

2-644489-2 AMP PCB Connection Systems Image 1

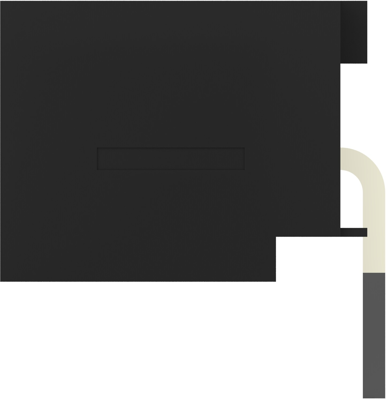

2-644489-2 AMP PCB Connection Systems Image 2

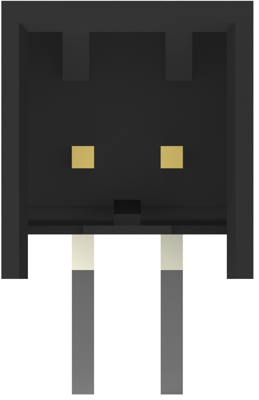

2-644489-2 AMP PCB Connection Systems Image 3

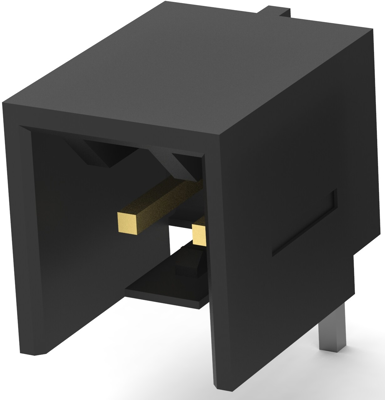

2-644489-2 AMP PCB Connection Systems Image 4
2-644489-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.0349 € *
Available in 5 Days: 7,931 pcs. - if ordered today
Total Price:
2.03 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0349 €
10 pcs.
1.8921 €
25 pcs.
1.7612 €
50 pcs.
1.6065 €
*incl. VAT plus shipping costs
Subject to prior sale

Header assembly, 2-644489-2, AMP

The 2-644489-2 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Filter Property Value
Connection plating gold-plated
Connection solder connection
Colour black
Additional parts equipped
Pin number 2 pole
Contact type pin
Orientation angled
Type of locking Yes
Rated voltage 250 V
contact surface gold-plated
Version pin header
Rated current 5 A
Number of rows 1
Grid 2.54 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
