2-644488-7 | AMP

Pin header, 7 pole, pitch 2.54 mm, angled, black, 2-644488-7

Order No.: 71P6882
EAN: 4099891728694
MPN:
2-644488-7
Series: MTA-100

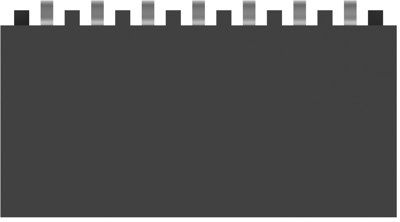

2-644488-7 AMP PCB Connection Systems Image 1

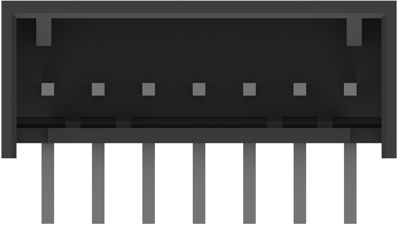

2-644488-7 AMP PCB Connection Systems Image 2

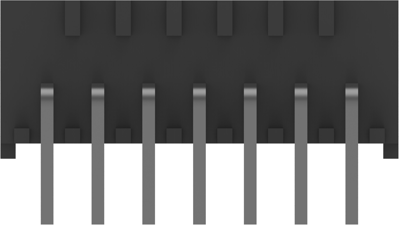

2-644488-7 AMP PCB Connection Systems Image 3

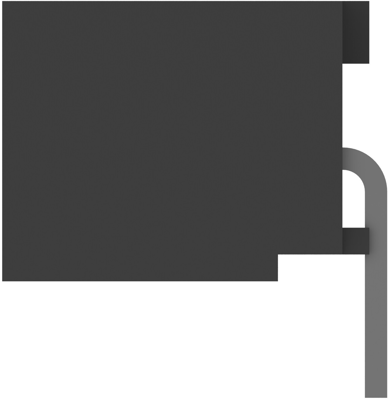

2-644488-7 AMP PCB Connection Systems Image 4

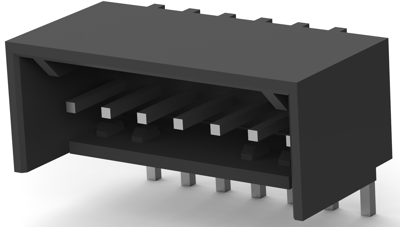

2-644488-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.1543 € *
Available in 5 Days: 3,491 pcs. - if ordered today
Total Price:
230.86 € *
Price list
Quantity
Price per unit*
200 pcs.
1.1543 €
400 pcs.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale

Header assembly, 2-644488-7, AMP

The 2-644488-7 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Colour black
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 7 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
