2-644487-9 | AMP

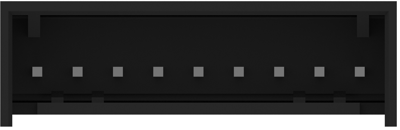

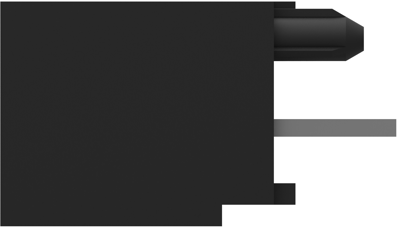

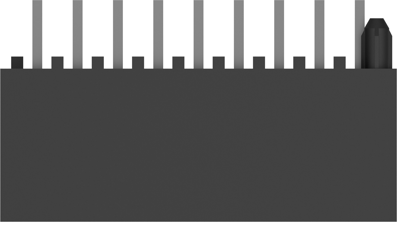

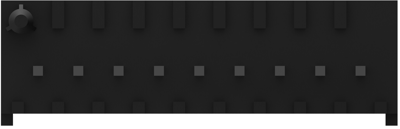

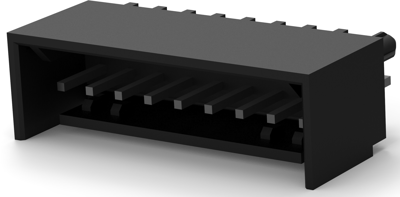

Pin header, 9 pole, pitch 2.54 mm, straight, black, 2-644487-9
Unit Price (€ / pc.)
3.8675 € *
Available in 5 Days: 2,362 pcs. - if ordered today
Total Price:
212.71 € *
Price list
Quantity
Price per unit*
55 pcs.
3.8675 €
150 pcs.
3.8080 €
*incl. VAT plus shipping costs
Subject to prior sale
Header assembly, 2-644487-9, AMP
The 2-644487-9 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.
Features
- One-step assembly
- No wire stripping
- No contact damage
- Reduced wiring errors
- Simpler tooling
- Simple maintenance and repair
Technical specifications
| Colour | black | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 5 A | |
| Grid | 2.54 mm | |
| Connection plating | gold-plated | |
| Pin number | 9 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated voltage | 250 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
