2-640456-0 | AMP

Pin header, 20 pole, pitch 2.54 mm, straight, natural, 2-640456-0

Order No.: 35P1873
EAN: 4099889928792
MPN:
2-640456-0
Series: MTA-100

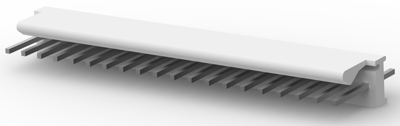

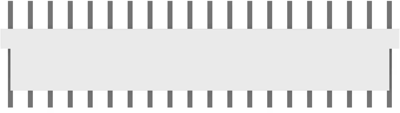

2-640456-0 AMP PCB Connection Systems Image 1
2-640456-0 AMP PCB Connection Systems Image 2
2-640456-0 AMP PCB Connection Systems Image 3
2-640456-0 AMP PCB Connection Systems Image 4
2-640456-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9397 € *
Available in 5 Days: 2,291 pcs. - if ordered today
Total Price:
1.94 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9397 €
10 pcs.
1.7612 €
50 pcs.
1.5946 €
100 pcs.
1.4280 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-640456-0, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 20 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 20
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 20 pole
Version pin header
Additional parts equipped
Orientation straight
Connection PCB connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
