2-640445-4 | AMP

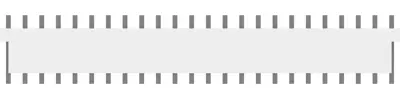

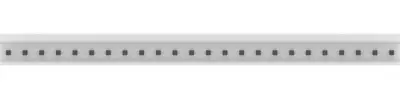

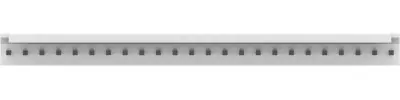

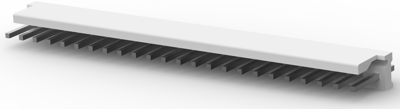

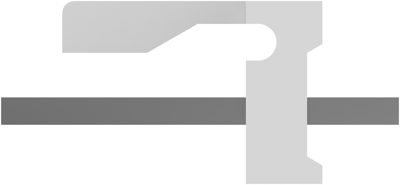

Pin header, 24 pole, pitch 3.96 mm, straight, natural, 2-640445-4
Unit Price (€ / pc.)
1.7255 € *
Available in 5 Days: 555 pcs. - if ordered today
PCB Connection System, 2-640445-4, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 24 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Polyester
- Housing Color: natural
- Orientation: straight
- Number of positions: 24
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 600 V | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Rated current | 7 A | |
| Grid | 3.96 mm | |
| Orientation | straight | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Connection | PCB connection | |
| Contact type | pin | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 24 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
