2-640383-0 | AMP

Pin header, 20 pole, pitch 3.96 mm, straight, natural, 2-640383-0

Order No.: 35P1144
EAN: 4099889922776
MPN:
2-640383-0

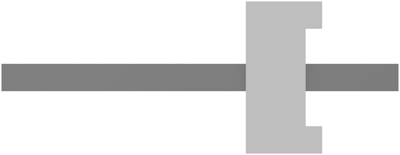

2-640383-0 AMP PCB Connection Systems Image 1

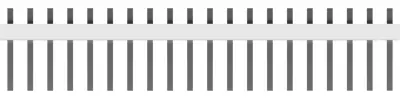

2-640383-0 AMP PCB Connection Systems Image 2

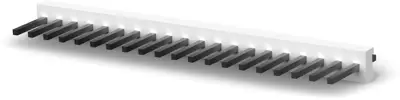

2-640383-0 AMP PCB Connection Systems Image 3
2-640383-0 AMP PCB Connection Systems Image 4
2-640383-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2138 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
5 pcs.
1.2138 €
10 pcs.
1.1186 €
25 pcs.
1.0472 €
50 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-640383-0, AMP

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 20 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Polyester - GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 20
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 3.96 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 7 A
Rated voltage 600 V
Orientation straight
Additional parts equipped
Number of rows 1
Colour natural
Pin number 20 pole
Connection PCB connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366910
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
