2-5767004-4 | AMP

Socket header, 114 pole, pitch 0.64 mm, straight, black, 2-5767004-4

Order No.: 36P9401
EAN: 4099889950090
MPN:
2-5767004-4

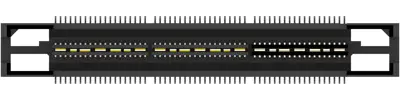

2-5767004-4 AMP PCB Connection Systems Image 1

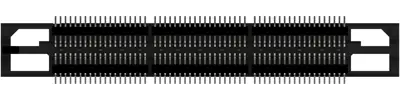

2-5767004-4 AMP PCB Connection Systems Image 2

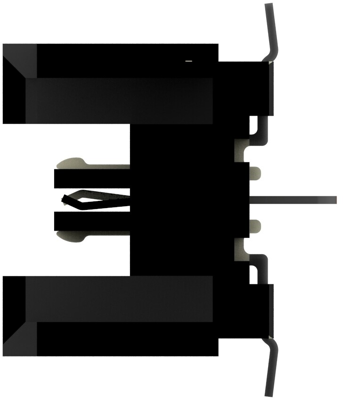

2-5767004-4 AMP PCB Connection Systems Image 3

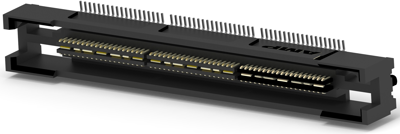

2-5767004-4 AMP PCB Connection Systems Image 4

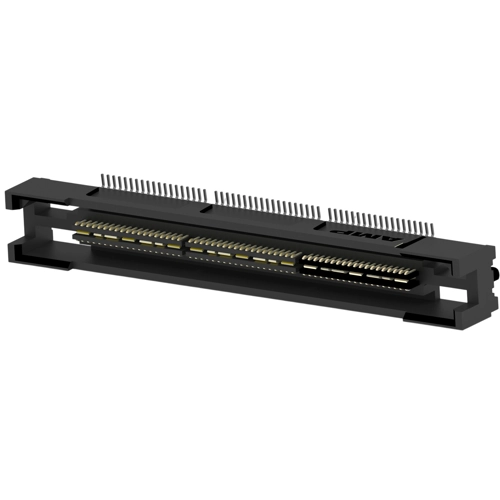

2-5767004-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
61.1898 € *
Available in 5 Days: 150 pcs. - if ordered today
Total Price:
611.90 € *
Price list
Quantity
Price per unit*
10 pcs.
61.1898 €
20 pcs.
57.6079 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 2-5767004-4, AMP

Board-to-Board, Printed Circuit Board, Header Only, Vertical, 114 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Matte
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 114
  • Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
  • Insulation Resistance: 2 MΩ
  • Centerline (Pitch): 0.64 mm
  • Row-to-Row Spacing: 5.79 mm [0.227547 in]
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour black
contact surface gold-plated
Rated current 11.5 A
Grid 0.64 mm
Connection plating tin-plated
Pin number 114 pole
Version socket header
Additional parts equipped
Orientation straight
Connection SMD
Contact type socket
Rated voltage 30 V
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
