2-5499206-8 | AMP

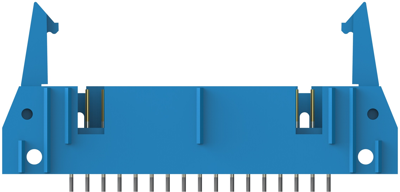

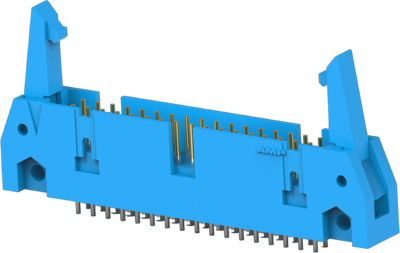

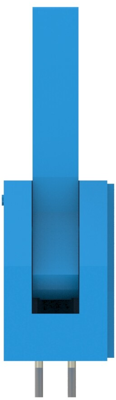

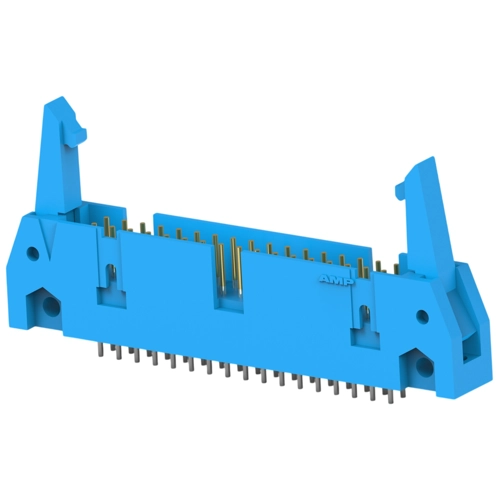

Pin header, 34 pole, pitch 2.54 mm, straight, blue, 2-5499206-8
Unit Price (€ / pc.)
11.7215 € *
Available in 5 Days: 267 pcs. - if ordered today
Total Price:
11.72 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7215 €
10 pcs.
10.8766 €
25 pcs.
10.1507 €
50 pcs.
9.2344 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 2-5499206-8, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 34 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Glass Filled Nylon/Polyester
- Housing Color: blue
- Orientation: straight
- Number of positions: 34
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| contact surface | gold-plated | |
| Connection | PCB connection | |
| Orientation | straight | |
| Contact type | pin | |
| Version | pin header | |
| Rated current | 1 A | |
| Colour | blue | |
| Rated voltage | 250 V | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Connection plating | tin-plated | |
| Pin number | 34 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
