2-5353512-0 | AMP

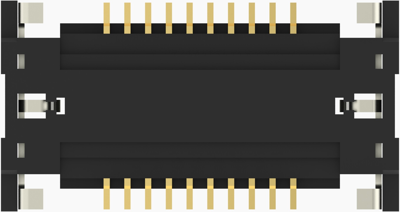

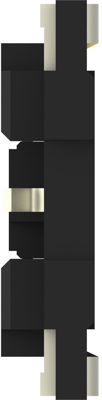

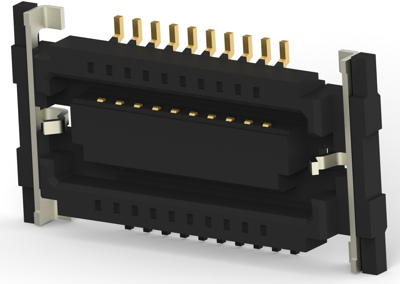

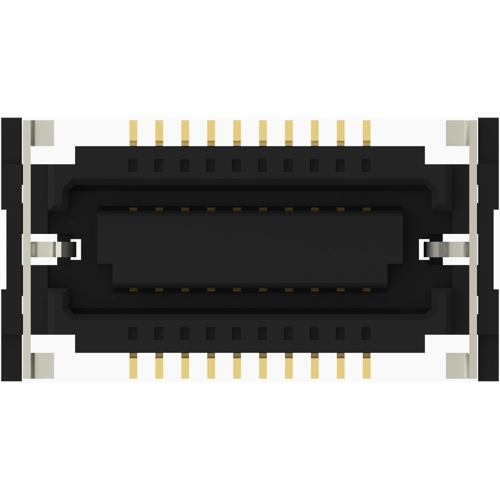

Socket header, 20 pole, pitch 0.5 mm, straight, black, 2-5353512-0
Order No.: 36P8034
EAN: 4099889948851
MPN:
2-5353512-0
Unit Price (€ / pc.)
2.7132 € *
Standard delivery time from the manufacturer is: 15 Weeks
PCB Connection System, 2-5353512-0, AMP
Board-to-Board, Printed Circuit Board, Vertical, 20 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: High heat-resisted resin
- Housing Color: black
- Orientation: straight
- Number of positions: 20
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 0.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 300 mA | |
| contact surface | gold-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | socket | |
| Connection plating | gold-plated | |
| Grid | 0.5 mm | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Connection | SMD | |
| Pin number | 20 pole | |
| Version | socket header | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
