2-5179230-3 | AMP

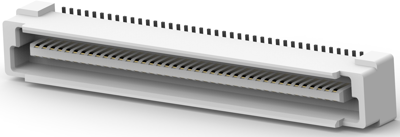

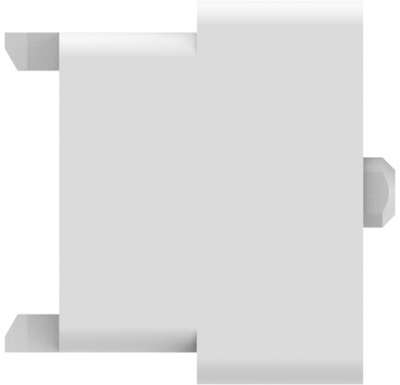

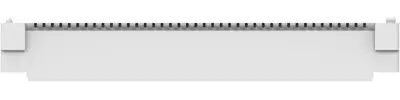

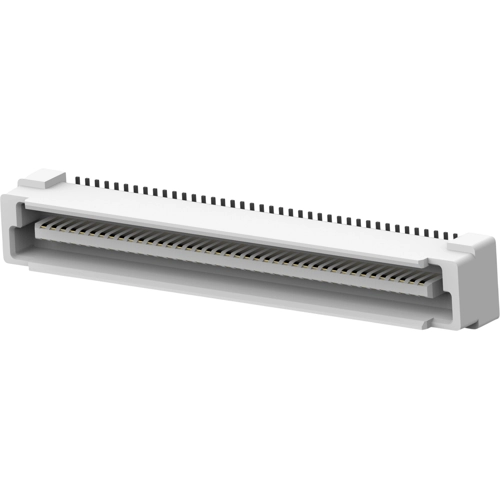

Pin header, 80 pole, pitch 0.8 mm, straight, natural, 2-5179230-3
Order No.: 36P4735
EAN: 4099889940411
MPN:
2-5179230-3
Unit Price (€ / pc.)
7.0210 € *
Available: 0 pcs.
Available in 5 Days: 5,388 pcs.
Leadtime: 11 Weeks **
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0210 €
10 pcs.
6.4498 €
50 pcs.
5.8072 €
100 pcs.
5.2241 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 2-5179230-3, AMP
Board-to-Board, Printed Circuit Board, Vertical, 80 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Matte
- Housing Color: natural
- Orientation: straight
- Number of positions: 80
- Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 0.8 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | SMD | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | natur | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated voltage | 100 V | |
| Rated current | 500 mA | |
| Orientation | gerade | |
| Pin number | 80-polig | |
| Grid | 0.8 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
