2-5177986-1 | AMP
Pin header, 40 pole, pitch 0.8 mm, straight, natural, 2-5177986-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.2967 € *
Available in 12 Days: 9,100 pcs. - if ordered today

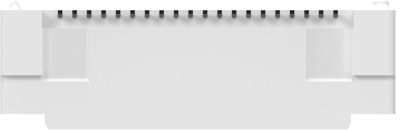

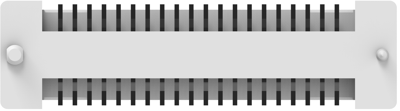

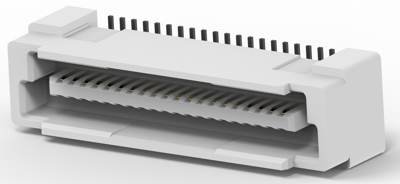

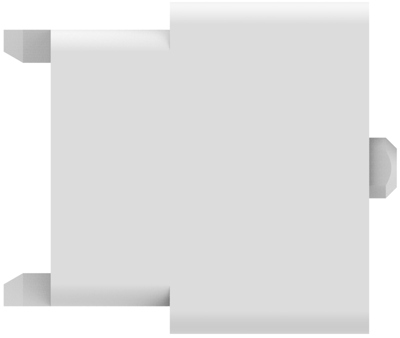

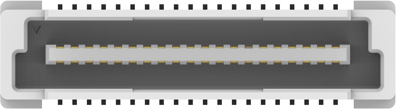

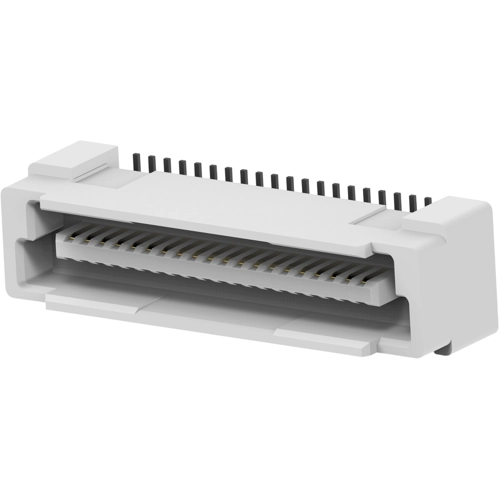

Pin header, 2-5177986-1, AMP
PCB Mount Header, Vertical, Board-to-Board, 40-Positions, .8 mm Centerline, Fully Shrouded, Gold (Au), Surface Mount, Signal, Free Height.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 40 pole | |
| Grid | 0.8 mm | |
| Connection | SMD | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 100 V | |
| Rated current | 500 mA | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
